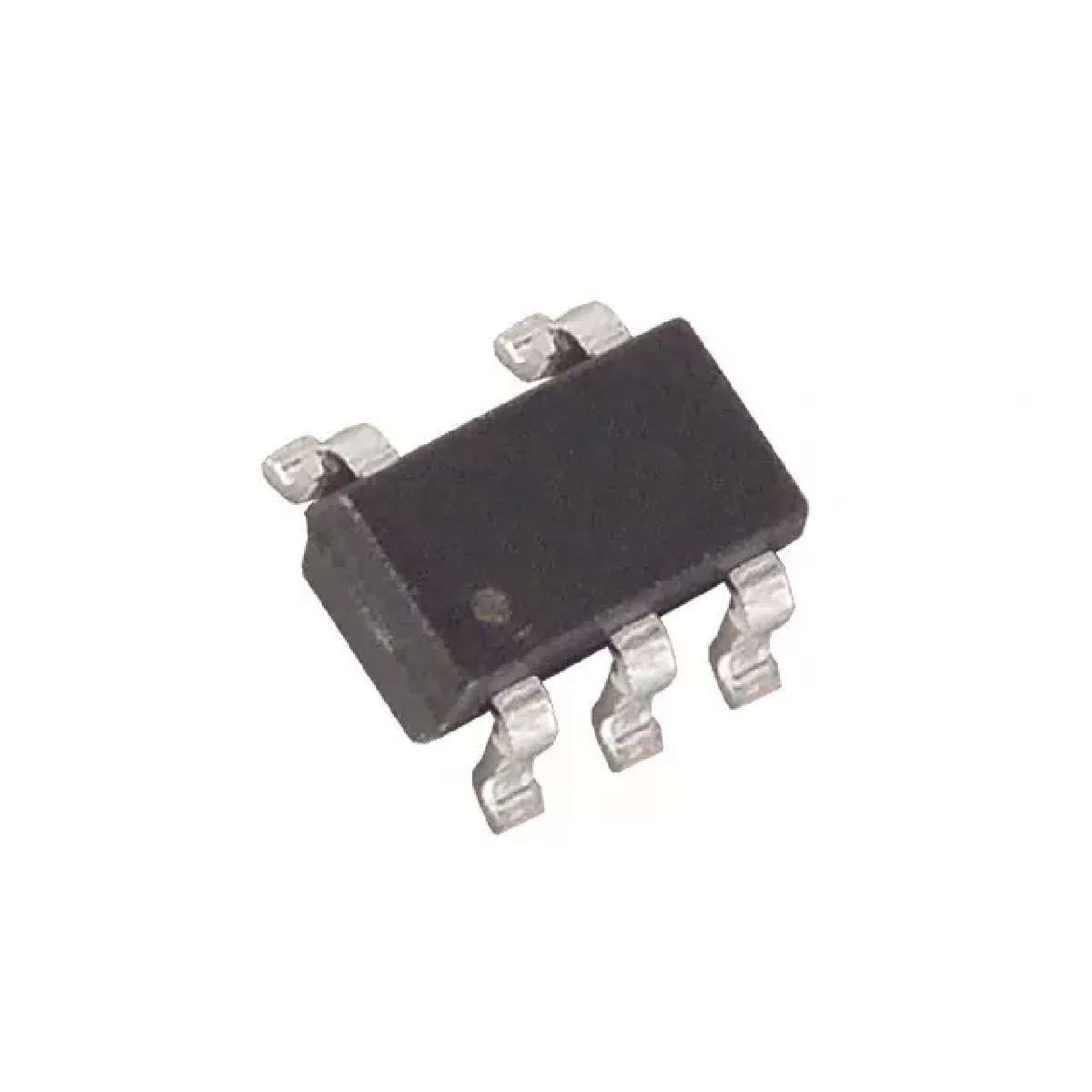

MAX8877EUK33-T

VOLT稳压器|固定| + 3.3V | CMOS | TSOP | 6PIN |塑料 VOLT REGULATOR|FIXED|+3.3V|CMOS|TSOP|6PIN|PLASTIC

General Description

The MAX8877/MAX8878 low-noise, low-dropout linear regulators operate from a 2.5V to 6.5V input and deliver up to 150mA. These devices are pin-compatible with the industry-standard "2982 and offer an improved dropout voltage. Typical output noise is 30µVRMS, and typical dropout is only 165mV at 150mA. The output voltage is preset to voltages in the range of 1.5V to 5.0V, in 100mV increments.

Features

♦ Pin-Compatible with the Industry-Standard "2982

♦ Low Output Noise: 30µVRMS

♦ Low 55mV Dropout at 50mA Output 165mV at 150mA output

♦ Low 85µA No-Load Supply Current

♦ Low 100µA Operating Supply Current even in dropout

♦ Thermal-Overload and Short-Circuit Protection

♦ Reverse Battery Protection

♦ Output Current Limit

♦ Preset Output Voltages ±1.4% Accuracy

♦ 10nA Logic-Controlled Shutdown

Applications

  Cellular Telephones

  Cordless Telephones

  PCS Telephones

  PCMCIA Cards

  Modems

  Hand-Held Instruments

  Palmtop Computers

  Electronic Planners
