MC78LC18NTR

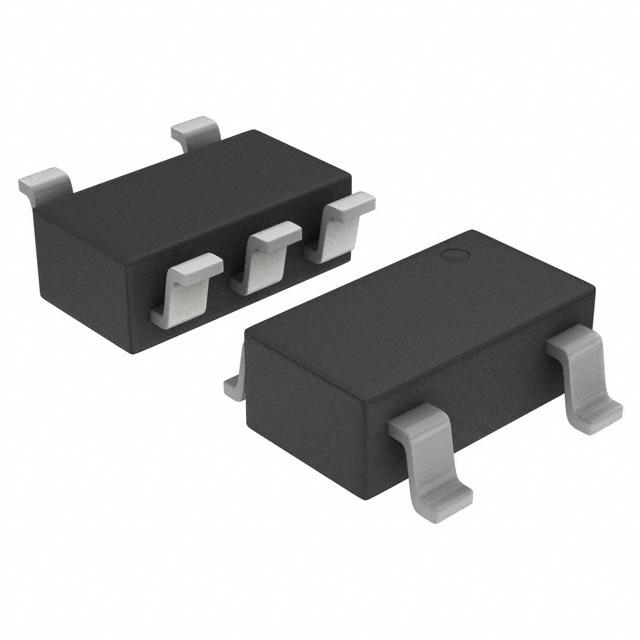

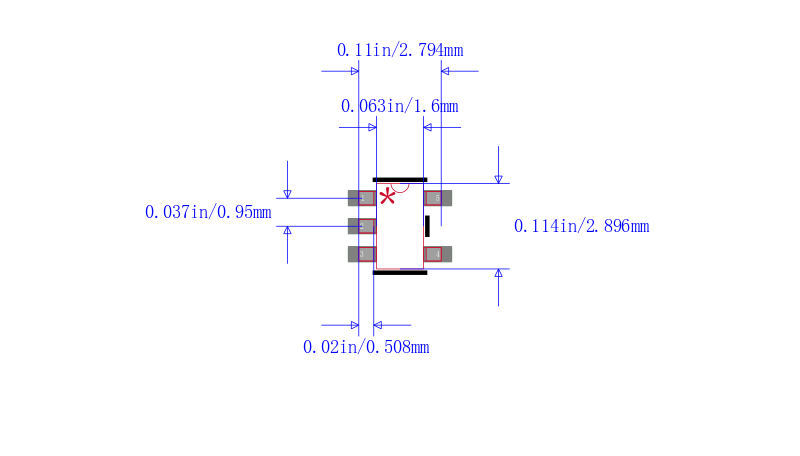

MC78LC18NTR 电压调整器/稳压电源IC 1.8V 35mV SOT-153/TSOP-5/SOT23-5 marking/标记 LAH 短路保护 过热保护

电路数量Number of Regulators| 1 \---|--- 输入电压VINVoltage - Input| 12V 输出电压VOUTVoltage - Output| 1.8V 输出电流IoCurrent - Output| 50mA 最大压降VDOVoltage - Dropout| 35mV 带使能脚EN/CEON/OFF功能With Enable Pin| 无 No 最大耗散功率PdPower dissipation| 140mW/0.14W Description & Applications| Micropower Voltage Regulator ；• Low Quiescent Current of 1.1 A • Excellent Line and Load Regulation • Maximum Operating Voltage of 12 V • Low Output Voltage Option • High Accuracy Output Voltage of 2.5% • Industrial Temperature Range of −40°C to 85°C • Battery Powered Instruments • Hand−Held Instruments • Camcorders and Cameras 描述与应用| 微功耗电压 稳压器;•低静态电流为1.1 •出色的线路和负载调节 最大工作电压为12 V， •低输出电压选项 •高输出电压精度为2.5％ •工业温度范围为-40°C至85°C •电池供电的仪器 •手持式仪表 •摄像机和照相机
