MAX4644EUT+T

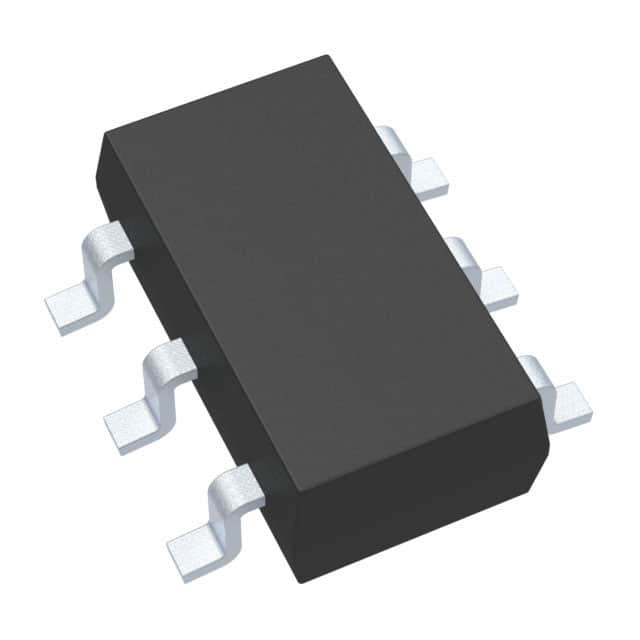

MAXIM INTEGRATED PRODUCTS  MAX4644EUT+T  模拟开关, 高速, SPDT, 1 放大器, 8 ohm, 1.8V 至 5.5V, SOT-23, 6 引脚

The is a high speed, low voltage, 4ohm, SPDT CMOS analogue switch in 6 pin SOT-23 package. It provides low 4ohm on-resistance RON as well as 1ohm RON flatness over the entire analogue signal range. The MAX4644 offers fast switching times of less than 20ns while ensuring break before make operation. It typically consumes only 0.01µW of quiescent power making it suitable for use in low power portable applications. The MAX4644"s features include low leakage currents over the entire temperature range, TTL/CMOS-compatible digital logic and excellent AC characteristics. Typical applications include battery operated equipment, audio and video signal routing, low voltage data acquisition systems, sample and hold circuits.

.

Supply voltage range is 1.8V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

Switching speed of tON 18ns typ, tOFF 12ns typ

.

RON match between channels is 0.1ohm at +5V supply

.

Low leakage is less than 0.35nA over entire temperature range

.

Low crosstalk is -82dB at 1MHz

.

High off isolation is -80dB at 1MHz

.

Total harmonic distortion is 0.018%

.

Low power consumption of less than 0.01µW
