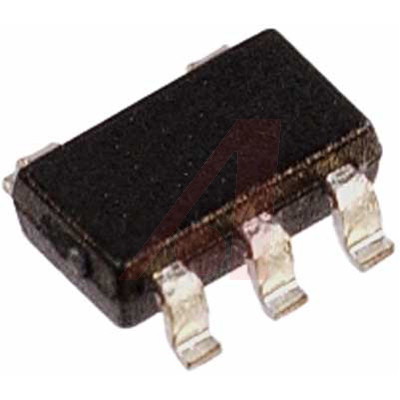

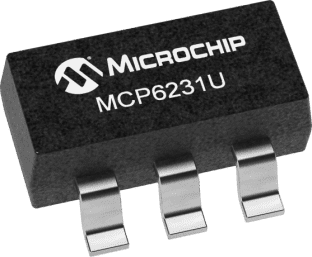

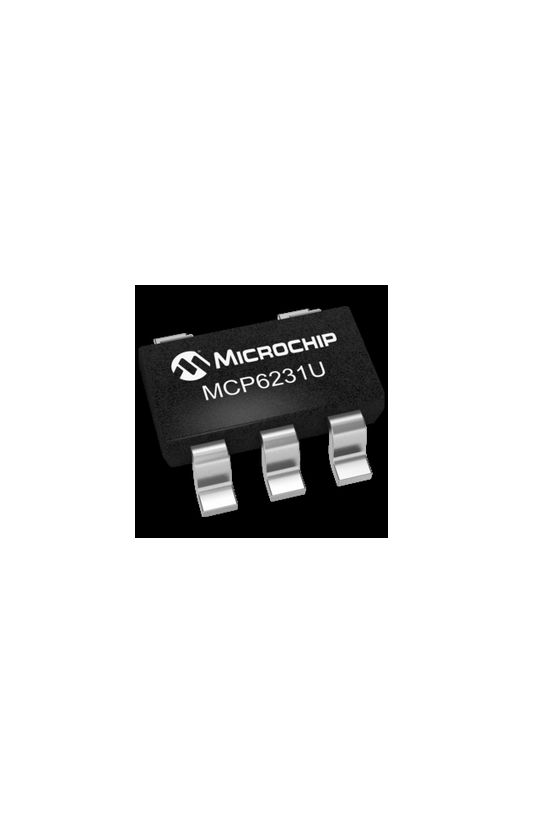

MICROCHIP MCP6231UT-E/OT 运算放大器, 单路, AEC-Q100, 300 kHz, 1个放大器, 0.15 V/µs, 1.8V 至 6V, SOT-23, 5 引脚
The is an Operational Amplifier provides wide bandwidth for the quiescent current. The MCP6231U family has a 300kHz gain bandwidth product and 65°C typical phase margin. This family operates from a single supply voltage as low as 1.8V, while drawing 20µA typical quiescent current. In addition, the MCP6231U family supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300mV to VSS - 300mV. The op amp is designed in one of "s advanced CMOS processes.
- .
- Wide bandwidth
- .
- Supports rail-to-rail input and output swing
电源电压DC 1.80V min
工作电压 1.8V ~ 5.5V
输出电流 23 mA
供电电流 20 µA
电路数 1
通道数 1
针脚数 5
共模抑制比 75 dB
静态电流 30 µA
输入补偿漂移 3.00 µV/K
带宽 300 kHz
转换速率 150 mV/μs
增益频宽积 300 kHz
输入补偿电压 5 mV
输入偏置电流 1 pA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 0.3 MHz
共模抑制比Min 61 dB
电源电压 1.8V ~ 6V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active

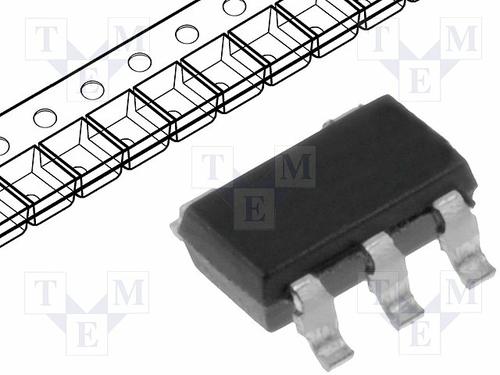

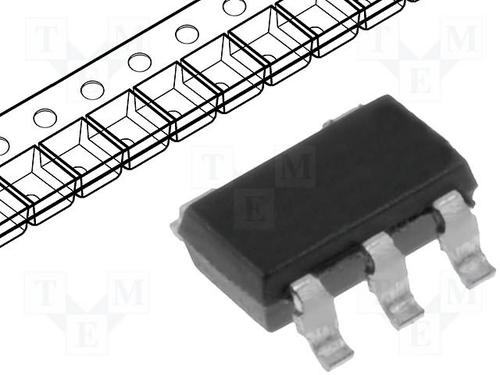

包装方式 Tape & Reel TR
制造应用 Automotive, Power Management, 车用, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MCP6231UT-E/OT Microchip 微芯 | 当前型号 | 当前型号 |
MCP6031T-E/OT 微芯 | 类似代替 | MCP6231UT-E/OT和MCP6031T-E/OT的区别 |
MCP6231T-E/OT 微芯 | 类似代替 | MCP6231UT-E/OT和MCP6231T-E/OT的区别 |
MCP6231UT-E/LT 微芯 | 类似代替 | MCP6231UT-E/OT和MCP6231UT-E/LT的区别 |
