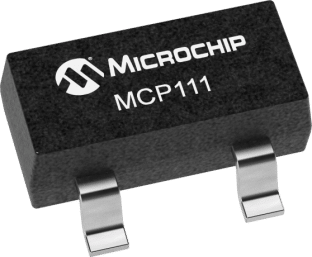

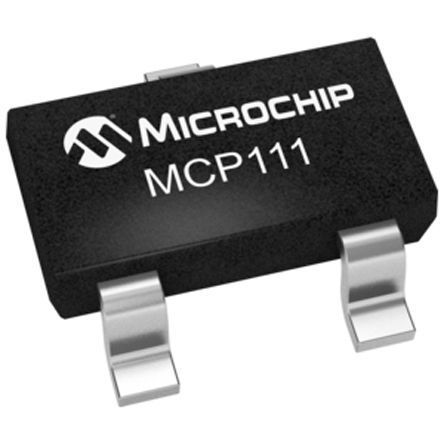

MICROCHIP MCP111T-290E/TT 监控器, 低电平有效复位, 1V-5.5V输入, SOT-23-3
The is a MicroPower Voltage Detector with active-low open-drain output. The voltage-detecting device designed to keep a microcontroller in reset until the system voltage has stabilized at the appropriate level for reliable system operation. This device also operates as protection from brownout conditions when the system supply voltage drops below the specified threshold voltage level.
- .
- Resets microcontroller in a power-loss event
- .
- 1.75µA Maximum ultra-low supply current
- .
- 1.5% Precise detection threshold
电源电压DC 1.00V min
工作电压 1V ~ 5.5V
输出电流 10 mA
供电电流 1.75 µA
针脚数 3
静态电流 1.00 µA
阈值电压 2.9 V
上升时间 5 μs
复位电压Min 2.857 V
复位电压Max 2.944 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
长度 2.9 mm
宽度 1.3 mm
高度 0.95 mm
封装 SOT-23-3
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 传感与仪器, Automotive, Portable Devices, Sensing & Instrumentation, 计算机和计算机周边, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MCP111T-290E/TT Microchip 微芯 | 当前型号 | 当前型号 |
TC53N2902ECTTR 微芯 | 功能相似 | MCP111T-290E/TT和TC53N2902ECTTR的区别 |
