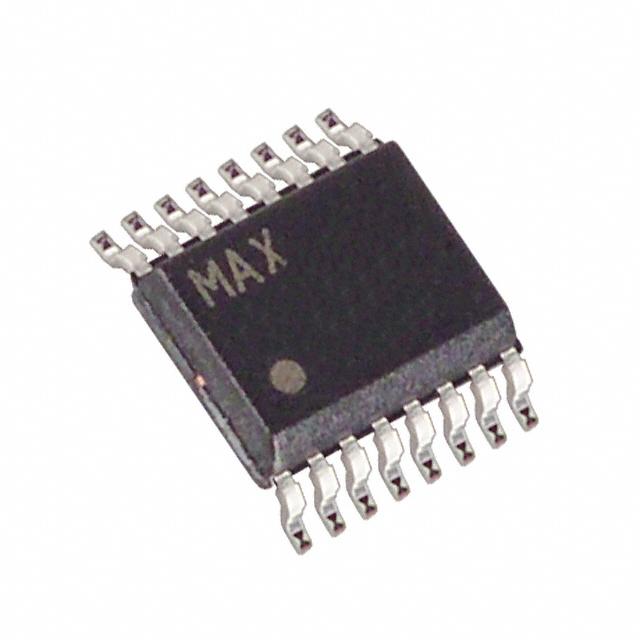

DC-DC开关降压稳压器, 可调, 2.6V-5.5V输入, 1.4MHz, 750mA, QSOP-16
The from Products is a dual, 180° out-of-phase, 1.4MHz, 750mA step down regulator with POR and RSI/PFO in 16 pin QSOP package. It is a dual-output current mode PWM buck regulators operate from 2.6V to 5.5V input and deliver a minimum of 750mA on each output. It operates at a fixed 1.4MHz to reduce output inductor and capacitor size and cost. Switching the regulators 180° out-of-phase also reduces the input capacitor size and cost. Ceramic capacitors can be used for input and output. The output voltages are programmable from 1.2V to VIN using external feedback resistors, or can be preset to 1.8V or 3.3V for output 1 and 1.5V or 2.5V for output 2. When one output is higher than 1.2V, the second can be configured down to sub-1V levels. Output accuracy is better than ±1% over variations in load, line and temperature. Internal soft-start reduces inrush current during start-up.
输出接口数 2
输出电压 800mV ~ 5V
输出电流 750 mA
针脚数 16
开关频率 1.4 MHz
输入电压Max 5.5 V
输入电压Min 2.6 V
输出电压Max 5.5 V
输出电压Min 800 mV
工作温度Max 85 ℃
工作温度Min 40 ℃
输入电压 2.6V ~ 5.5V
安装方式 Surface Mount

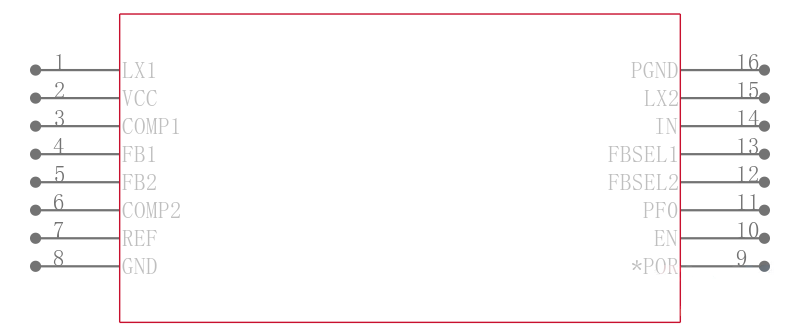

引脚数 16

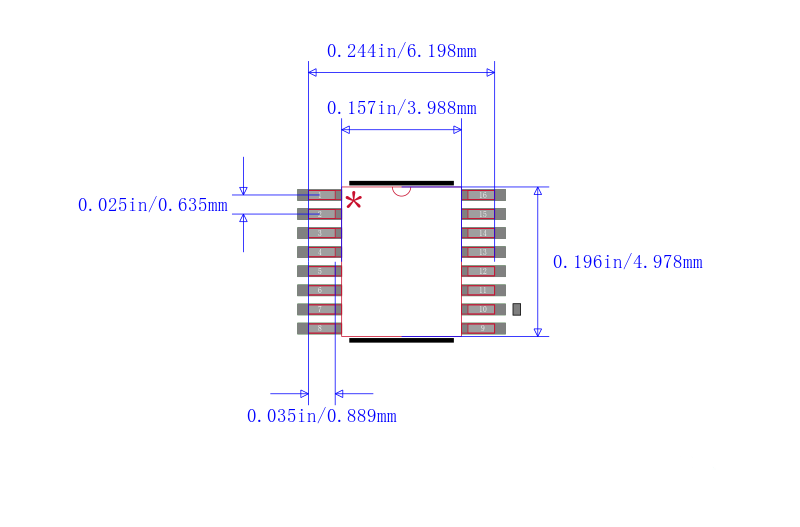

封装 QSOP-16
长度 4.98 mm
宽度 3.99 mm
高度 1.55 mm
封装 QSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tube
制造应用 通信与网络, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX1972EEE+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX1972EEE+T 美信 | 完全替代 | MAX1972EEE+和MAX1972EEE+T的区别 |
MAX1972EEE 美信 | 类似代替 | MAX1972EEE+和MAX1972EEE的区别 |
MAX1972EEE-T 美信 | 功能相似 | MAX1972EEE+和MAX1972EEE-T的区别 |
