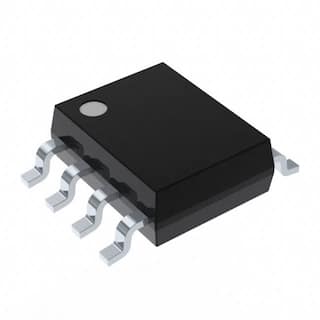

MAXIM INTEGRATED PRODUCTS MAX660ESA+T 芯片, CMOS, 单片电压转换器
The is a CMOS monolithic voltage converter in 8 pin NSOIC package. It is a monolithic, charge pump voltage inverter converts a +1.5V to +5.5V input to a corresponding -1.5V to -5.5V output. Using only two low cost capacitors, the charge pump"s 100mA output replaces switching regulators eliminating inductors and its associated cost, size and EMI. Greater than 90% efficiency over most of its load-current range combined with a typical operating current of only 120µA provides ideal performance for both battery-powered and board level voltage conversion applications. The MAX660 can also double the output voltage of an input power supply or battery, providing +9.35V at 100mA from a +5V input. A frequency control FC pin selects either 10KHz typ or 80KHz typ 40KHz min operation to optimize capacitor size and quiescent current. The oscillator frequency can also be adjusted with an external capacitor or driven with an external clock.
输出接口数 1
输出电压 -5.50 V min
输出电流 100 mA
针脚数 8
开关频率 10kHz, 80kHz
输入电压Max 5.5 V
输入电压Min 1.5 V
工作温度Max 85 ℃
工作温度Min 40 ℃
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 5 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Portable Devices, 便携式器材, Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX660ESA+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX660ESA+ 美信 | 类似代替 | MAX660ESA+T和MAX660ESA+的区别 |
MAX660CSA+ 美信 | 类似代替 | MAX660ESA+T和MAX660CSA+的区别 |
MAX660CSA 美信 | 类似代替 | MAX660ESA+T和MAX660CSA的区别 |
