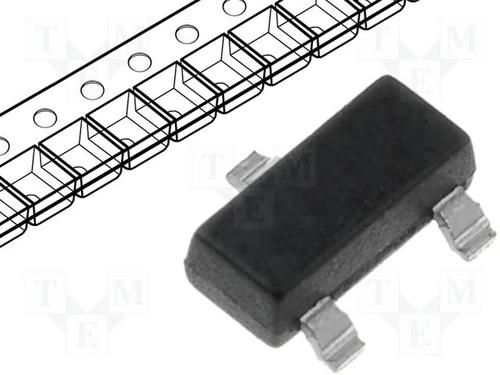

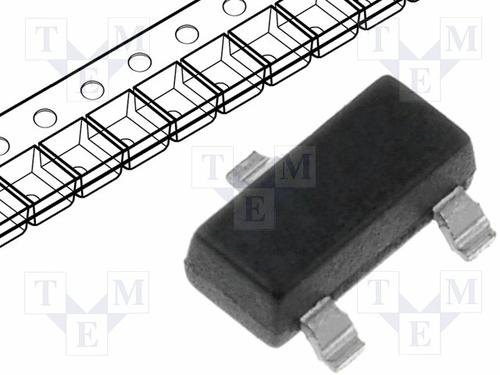

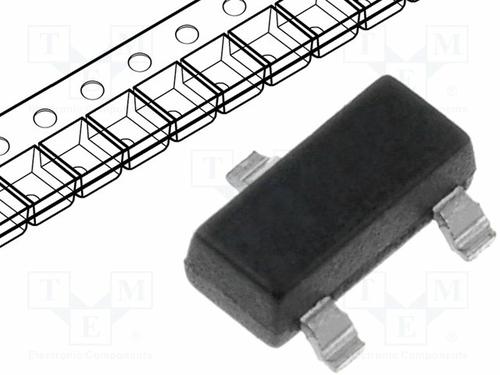

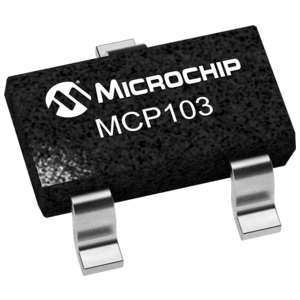

MICROCHIP MCP103T-475E/TT 监控器电路, 低电平有效, 推-挽复位, 1V-5.5V输入, SOT-23-3
For an extra layer of protection, use this microprocessor supervisory circuit from Technology to have another processor take control in case of an emergency. This device has a minimum operating supply voltage of 1 V and a maximum of 5.5 V. This part has an operating temperature range of -40 °C to 125 °C. It has a typical reset threshold voltage of 4.63 V, with a minimum of 4.561 V and a maximum of 4.7 V.
电源电压DC 1.00V min
工作电压 1V ~ 5.5V
供电电流 1.00 µA
针脚数 3
静态电流 1 µA
阈值电压 4.63 V
输出电流Max 10 mA
复位电压Min 4.561 V
复位电压Max 4.7 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 1 V
安装方式 Surface Mount
引脚数 3

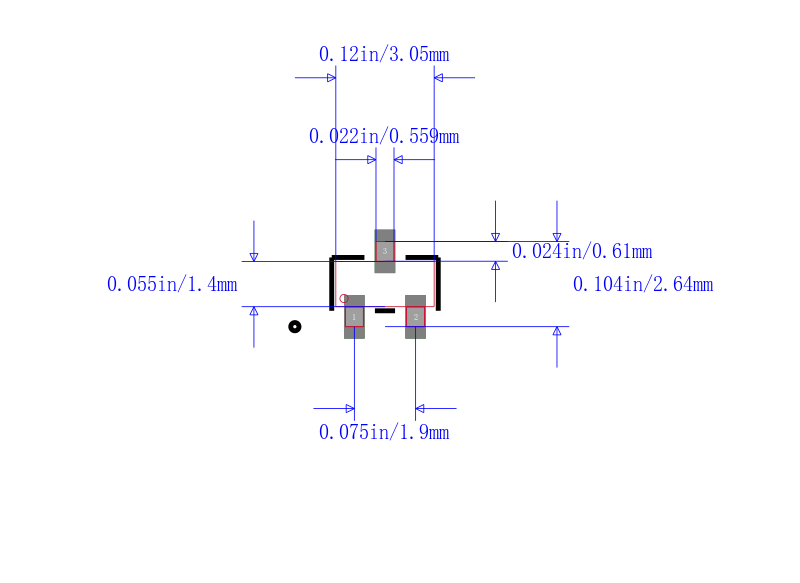

封装 SOT-23-3
封装 SOT-23-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
