MC9S08JM60CLH

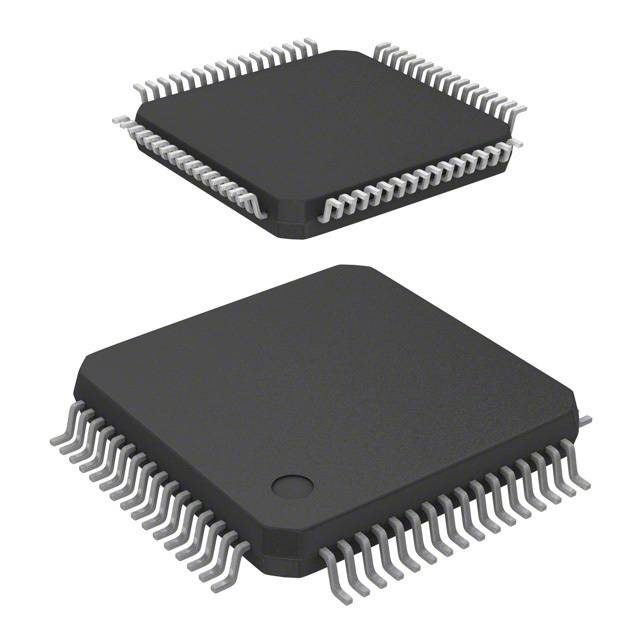

NXP  MC9S08JM60CLH  芯片, 微控制器, 8位, S08, 60K闪存, LQFP64

The is a 8-bit Application-specific Microcontroller based on enhanced HCS08 CPU 24MHz bus with CISC architecture operates at a maximum frequency of 48MHz. The device incorporates 60kB internal flash, 4kB internal RAM, an analog comparator, 12-channel 12-bit A/D converter and 51 general-purpose I/O pins. This device also features peripherals like USB 2.0 full-speed 12Mbps device controller, one inter-integrated circuit IIC bus module to operate at up to 100kbps, two serial peripheral interface modules SPI, two serial communications interface SCI modules and real-time counter RTC. Breakpoint capability to allow single breakpoint setting during in-circuit debugging plus two more breakpoints in on-chip debug module. In-circuit emulator ICE debug module containing two comparators and nine trigger modes. Eight deep FIFO for storing change-of-flow addresses and event-only data. Debug module supports both tag and force breakpoints.

.

HC08 Instruction set with added BGND instruction

.

Background debugging system

.

In-circuit emulator ICE debug module

.

Support for up to 32 Interrupt/reset sources

.

Clock source options include crystal, resonator, external clock

.

MCG multi-purpose clock generator - PLL and FLL, internal reference clock with trim adjustment

.

Optional computer operating properly COP

.

Low-voltage detection with reset or interrupt

.

Illegal opcode detection with reset

.

Illegal address detection with reset

.

Wait plus two stops

.

One 2-channel and one 6-channel 16-bit Timer/pulse-width modulator TPM modules

.

8-pin Keyboard interrupt module KBI
