MIC94082YFT TR

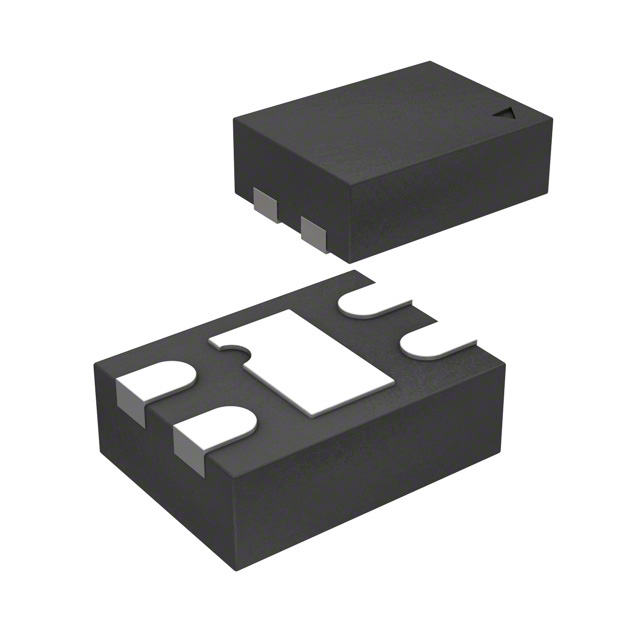

MICREL SEMICONDUCTOR  MIC94082YFT TR  电源负载开关, 高压侧, 高电平有效, 1路输出, 5.5V, 2A, TMLF-4

The is a high-side Power Switch designed to operate from 1.7 to 5.5V input voltage. The load switch pass element is an internal 67mR RDSON P-Channel MOSFET which enables the device to support up to 1.5A of continuous current. The soft-start feature is provided to prevent an in-rush current event from pulling down the input supply voltage. An active pull-down on the enable input keeps the MIC940802 in a default OFF state until the enable pin is pulled above 1.25V. Internal level shift circuitry allows low voltage logic signals to switch higher supply voltages. The enable voltage can be as high as 5.5V and is not limited by the input voltage. The MIC94080/1/2/3/4/5 operating voltage range makes them ideal for Lithium ion and NiMH/NiCad/Alkaline battery powered systems, as well as non-battery powered applications. The devices provide low quiescent current and low shutdown current to maximize battery life.

.

Internal level shift for CMOS/TTL control logic

.

Ultralow quiescent current

.

Micro-power shutdown current

.

Ultra fast turn off time
