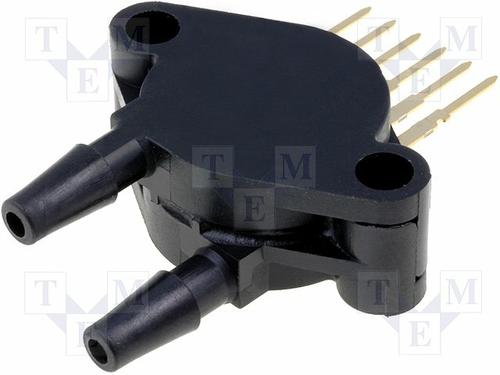

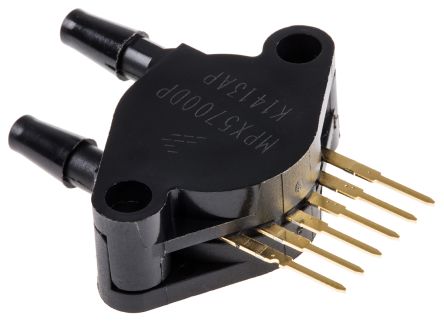

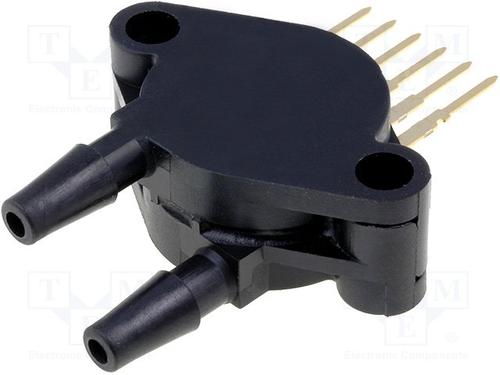

MPX5700DP

NXP  MPX5700DP  压力传感器, 差分, 6.4 mV/kPa, 0 kPa, 700 kPa, 4.75 V, 5.25 V

差分/量规高达 1000 kPa，Freescale

高量程压力差分/量规传感器在压力施加到传感器侧（差分）和大气压力侧（校准的）时，测量来源之间的压力差异。

### 压力传感器，Freescale

得捷:
SENSOR 101.53PSID 0.19" 4.7V

欧时:
NXP 700kPa 环氧树脂 分差 模拟 压力传感器 MPX5700DP, ±2.5 %精确度, 4.7 V输出

立创商城:
MPX5700DP

艾睿:
Board Mount Pressure Sensor 0.2V to 4.7V 0kPa to 700kPa Differential Automotive 6-Pin Case 867C-05 Tray

安富利:
The Freescale MPX5700 series piezoresistive transducer is a state-of the-art monolithic silicon pressure sensor designed for a wide range of applications, but particularly those employing a MCU or MPU with A/D inputs. This patented, single element transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure.

Chip1Stop:
Pressure Sensor 0.2V to 4.7V 0kPa to 700kPa Differential 6-Pin Case 867C-05 Tray

Verical:
Board Mount Pressure Sensor 0.2V to 4.7V 0kPa to 700kPa Differential Automotive 6-Pin Case 867C-05 Tray
