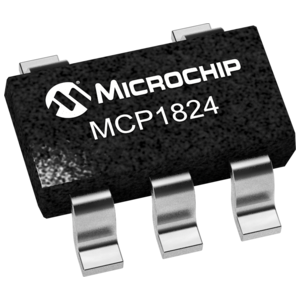

MICROCHIP MCP1824T-1202E/OT 固定电压稳压器, LDO, 2.1V至6V, 200mV压差, 1.2V输出, 300mA输出, SOT-23-5
PMIC - 稳压器 - 线性 正 固定 1 输出 300mA SOT-23-5
立创商城:
MCP1824T-1202E/OT
得捷:
IC REG LINEAR 1.2V 300MA SOT23-5
e络盟:
固定电压稳压器, LDO, 2.1V至6V, 200mV压差, 1.2V输出, 300mA输出, SOT-23-5
艾睿:
This LDO MCP1824T-1202E/OT linear regulator from Microchip Technology acts like a variable resistor to maintain a steady voltage level. It has an overall accuracy of ±2.5 %. Its typical dropout voltage at current is 0.2@300mA V. This voltage regulation device&s;s single output can produce a current up to 0.3Min A. Using the part will provide the power your application needs by requiring a voltage only of 2.1 V and not exceeding a voltage of 6 V. With a fixed output that has a voltage of 1.2 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 0.5%Typ and line regulation of 0.05%/VTyp. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.32@300mA V.
Allied Electronics:
300 mA CMOS LDO, Vout=1.2V, Extended Temp Range
Chip1Stop:
LDO Regulator Pos 1.2V 0.3A 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 1.2V 0.3A Automotive 5-Pin SOT-23 T/R
Newark:
# MICROCHIP MCP1824T-1202E/OT Fixed LDO Voltage Regulator, 2.1V to 6V, 200mV Dropout, 1.2Vout, 300mAout, SOT-23-5
DeviceMart:
IC REG LDO 1.2V .3A SOT23-5
输出接口数 1
输入电压DC 2.10V min
输出电压 1.2 V
输出电流 300 mA
供电电流 220 μA
针脚数 5
耗散功率 0.254 W
静态电流 120 µA
输出电容类型 Ceramic
跌落电压 200 mV
热阻 81℃/W RθJC
输入电压Max 6 V
输入电压Min 2.1 V
输出电压Min 1.2 V
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2.5 %
输入电压 6 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
长度 3.1 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, 电源管理, 工业, Computers & Computer Peripherals, 计算机和计算机周边, Industrial, Communications & Networking, 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP1824T-1202E/OT Microchip 微芯 | 当前型号 | 当前型号 |
ADP151AUJZ-1.2-R7 亚德诺 | 功能相似 | MCP1824T-1202E/OT和ADP151AUJZ-1.2-R7的区别 |
