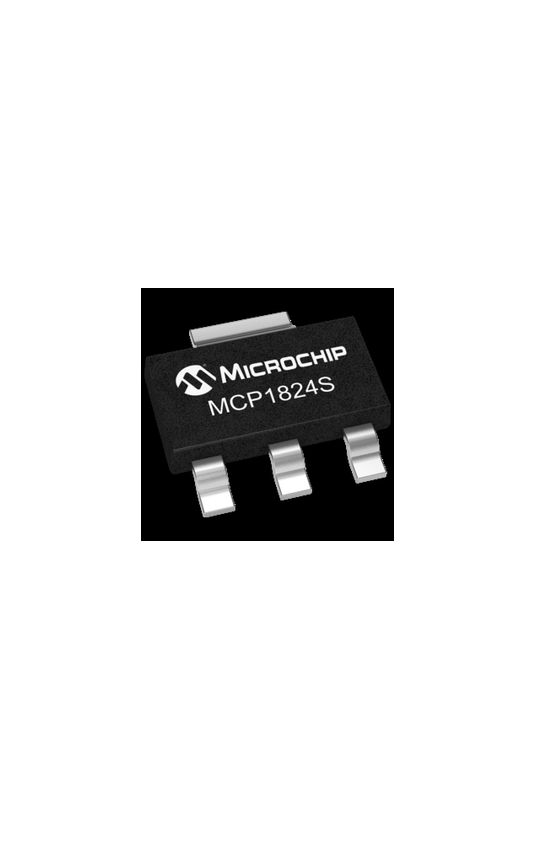

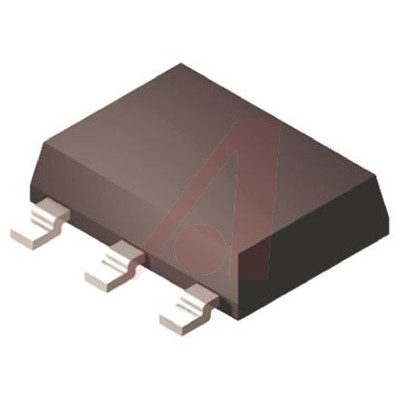

MICROCHIP MCP1824ST-2502E/DB 固定电压稳压器, LDO, 2.1V至6V, 200mV压差, 2.5V输出, 300mA输出, SOT-223-3
MCP1824 低压降电压稳压器
### LDO(低压降)线性稳压器,
得捷:
IC REG LIN 2.5V 300MA SOT223-3
立创商城:
MCP1824ST-2502E/DB
欧时:
Microchip MCP1824ST-2502E/DB LDO 稳压器, 2.5 V输出, 300mA最大输出, ±2.5%精确度, 2.1 → 6 V输入
贸泽:
LDO Voltage Regulators 300 mA CMOS LDO Vout 2.5V Ext Temp Range
e络盟:
固定电压稳压器, LDO, 2.1V至6V, 200mV压差, 2.5V输出, 300mA输出, SOT-223-3
艾睿:
This LDO MCP1824ST-2502E/DB linear regulator from Microchip Technology acts like a variable resistor to maintain a steady voltage level. It has an overall accuracy of ±2.5 %. Its typical dropout voltage at current is 0.2@300mA V. This voltage regulation device&s;s single output can produce a current up to 0.3Min A. Use this part at voltages between 2.1 V and 6 V. With a fixed output that has a voltage of 2.5 V, this is power management at its best. Users like the load regulation of 0.5%Typ and line regulation of 0.05%/VTyp. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its polarity is positive. The maximum dropout voltage is 0.32@300mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
Allied Electronics:
LDO Regulator 300mA 2.5V SHDN SOT223-3
安富利:
LDO Regulator Pos 2.5V 0.3A 4-Pin3+Tab SOT-223 T/R
Newark:
# MICROCHIP MCP1824ST-2502E/DB Fixed LDO Voltage Regulator, 2.1V to 6V, 200mV Dropout, 2.5Vout, 300mAout, SOT-223-3
DeviceMart:
IC REG LDO 2.5V .3A SOT223-3
输出接口数 1
输出电压 2.5 V
输出电流 300 mA
供电电流 220 µA
针脚数 3
静态电流 0.12 mA
输出电容类型 Ceramic
跌落电压 200 mV
输入电压Max 6 V
输入电压Min 2.1 V
输出电压Min 2.5 V
输出电流Max 300 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2.5 %
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 3
封装 TO-261-4
长度 6.5 mm
宽度 3.5 mm
高度 1.6 mm
封装 TO-261-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 计算机和计算机周边, Industrial, 工业, Communications & Networking, 车用, Power Management, Computers & Computer Peripherals, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MCP1824ST-2502E/DB Microchip 微芯 | 当前型号 | 当前型号 |
MCP1824S-2502E/DB 微芯 | 功能相似 | MCP1824ST-2502E/DB和MCP1824S-2502E/DB的区别 |
