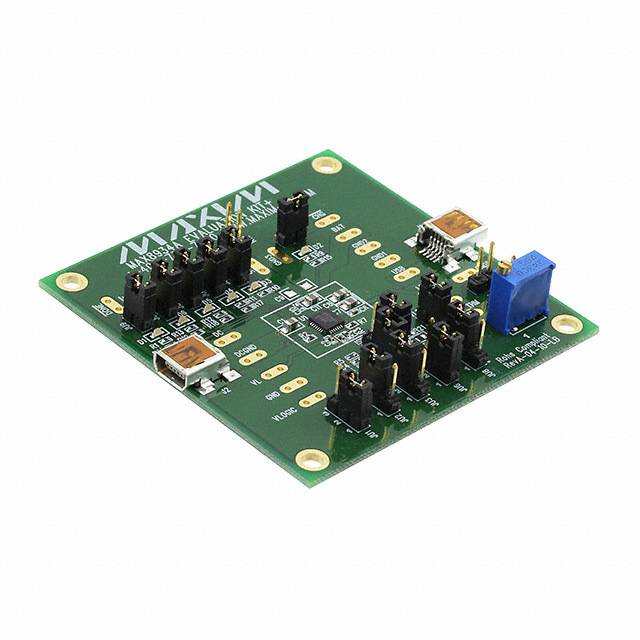

MAX8934AEVKIT+

评估板, MAX8934A锂离子/锂聚合物电池充电器

Evaluation kit EV kit for evaluating the MAX8934A dual-input linear charger and Smart Power Selector™ with advanced temperature monitoring. The EV kit comes standard with the MAX8934A installed but can also be used to evaluate the MAX8934B, MAX8934C, MAX8934D and MAX8934E by replacing the MAX8934A U1 with the MAX8934X respectively. Suitable for use in digital still cameras and digital video cameras, handheld game systems, PDAs, palmtop and wireless handhelds, portable media, MP3 players and PNDs.

.

Battery temperature monitor adjusts charge current and termination voltage automatically

.

Potentiometer adjustment available

.

0603 thermistor footprint available

.

Advanced thermistor configuration available R21, R22

.

Thermistor enable input THMEN

.

Adjustable input-current limit and fast-charge current limit

.

Active low DOK/UOK/CHG/ DONE/ FLT/OT status LED indicators

.

USB suspend logic input

.

3.3V always-on LDO

.

Fully assembled and tested
