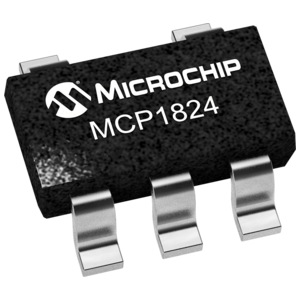

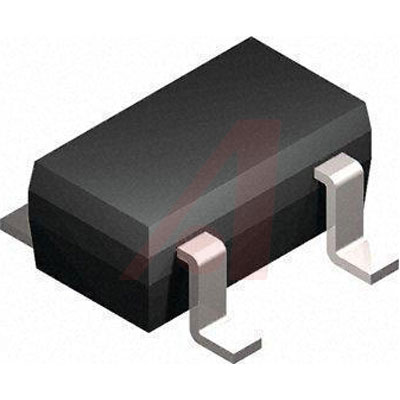

MICROCHIP MCP1824T-5002E/OT 固定电压稳压器, LDO, 2.1V至6V, 200mV压差, 5V输出, 300mA输出, SOT-23-5
MCP1824 低压降电压稳压器
得捷:
IC REG LINEAR 5V 300MA SOT23-5
立创商城:
正 Vin=6V Vout=5V 300mA 55dB@100Hz
欧时:
Microchip MCP1824T-5002E/OT LDO 稳压器, 5 V输出, 300mA最大输出, ±2.5%精确度, 2.1 → 6 V输入
e络盟:
固定电压稳压器, LDO, 2.1V至6V, 200mV压差, 5V输出, 300mA输出, SOT-23-5
艾睿:
Stable voltages are always needed for sensitive systems implement this LDO MCP1824T-5002E/OT linear regulator from Microchip Technology. It has an overall accuracy of ±2.5 %. Its typical dropout voltage at current is 0.2@300mA V. This voltage regulation device&s;s single output can produce a current up to 0.3Min A. It only needs a voltage of at least 2.1 V while not exceeding 6 V to effectively power your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.5%Typ and line regulation of 0.05%/VTyp. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive. The maximum dropout voltage is 0.32@300mA V.
Allied Electronics:
IC, LINEAR REGULATOR; MAX. INPUT, 6V; OUTPUT, 5V; 300MA; ACCURACY, 0.4%; SOT23-5
安富利:
LDO Regulator Pos 5V 0.3A 5-Pin SOT-23 T/R
富昌:
MCP1824 系列 300 mA 5 V 低静态电流 LDO 稳压器 - SOT-23-5
Verical:
LDO Regulator Pos 5V 0.3A Automotive 5-Pin SOT-23 T/R
Newark:
# MICROCHIP MCP1824T-5002E/OT Fixed LDO Voltage Regulator, 2.1V to 6V, 200mV Dropout, 5Vout, 300mAout, SOT-23-5
DeviceMart:
IC REG LDO 5V .3A SOT23-5
输出接口数 1
输入电压DC 2.10V min
输出电压 5 V
输出电流 300 mA
供电电流 220 μA
针脚数 5
静态电流 0.12 mA
输出电容类型 Ceramic
跌落电压 200 mV
输入电压Max 6 V
输入电压Min 2.1 V
输出电压Min 5 V
输出电流Max 300 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2.5 %
输出通道数 1
输入电压 6 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
长度 3.1 mm
宽度 1.8 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 工业, 计算机和计算机周边, 车用, Computers & Computer Peripherals, Power Management, 电源管理, Communications & Networking, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
