评估套件, MAX4983E高静电防护保护双极双掷DPDT开关

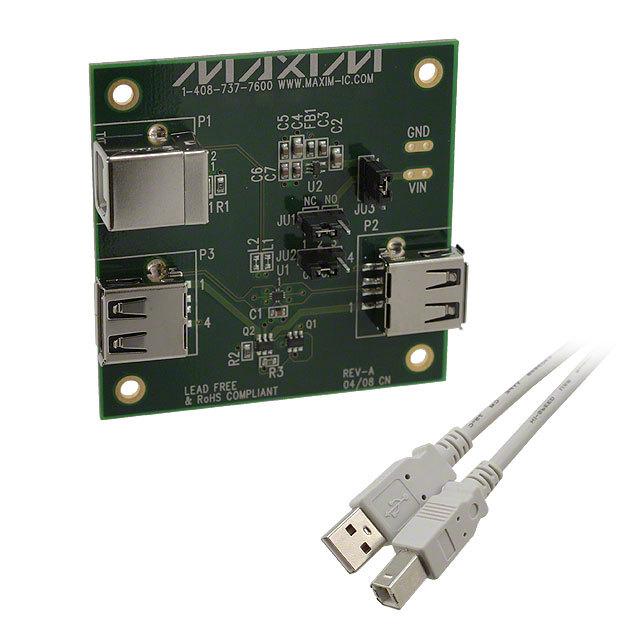

The from Maxim integrated Products is an evaluation kit for MAX4983E high ESD protected double-pole/double-throw DPDT switch. The MAX4983E high ESD protected analogue switch combines the low on-capacitance and low on-resistance necessary for high performance switching applications. The EV kit is designed to demonstrate the MAX4983E ICs used in USB 2.0 high speed 480Mbps switching applications. It routes a single USB signal between one of two type-A USB ports. The MAX4983E EV kit PCB comes with a MAX4983EEVB+ installed. The kit can be powered by the P1 USB port through the 3.3V LDO or by an external power supply VIN. The on-board MAX8511 linear regulator U2 provides the regulated 3.3V from the USB bus voltage 5V provided at P1.
- .
- USB powered
- .
- Complete USB 2.0 480Mbps switching circuit
- .
- On-board VBUS power switching circuit
- .
- Proven PCB layout
- .
- Fully assembled and tested
