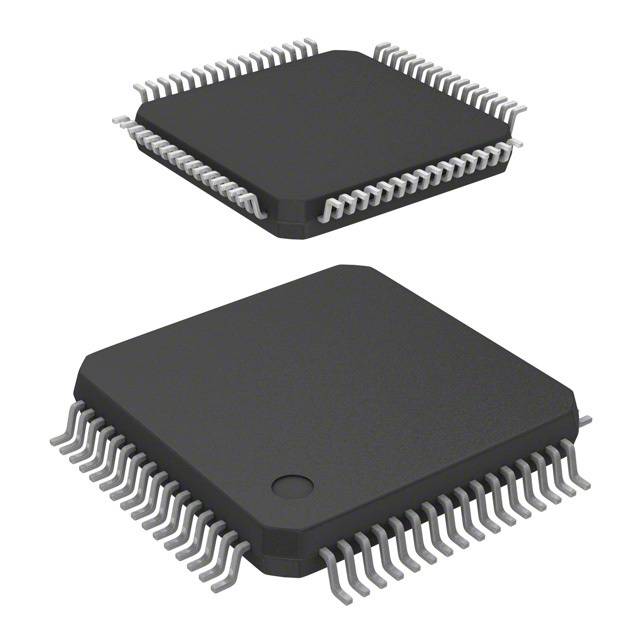

MC56F8037VLH

NXP  MC56F8037VLH  芯片, 数字信号控制器DSC, 16位, 64K闪存

Overview

® 56F803X digital signal controllers belong to the 56800E core-based DSC family. It combines digital signal processing and microcontroller functionalities on a single chip, with a flexible set of peripherals.

* Supports industrial and motor control, home appliances, inverters, smart sensors, fire and security systems, switched-mode power supply, power management, and medical monitoring

* On-chip integration and ease of implementation help to speed development, lower component count, and significantly reduce system cost

* Supported by robust development tools to simplify and accelerate time-to-market

MoreLess

## Features

* DSP and MCU functionality in a unified,C-efficient architecture with up to 32 MIPS at 32 MHz core frequency

* 64 KB 32K x 16 program Flash

* 8 KB 4K x 16 unified data/program RAM

* Integrated Peripherials:

* Controller area network CAN

* One 6-channel pulse width modulation PWM module

* Three programmable interval timers PITs

* Up to 53 GPIO lines

* Two up to 8-channel 12-bit analog-to-digital converters ADCs

* Two 12-bit digital-to-analog converters DACs

* This product is included in NXP®.s product longevity program, with assured supply for a minimum of 10 years after launch

## Features Comparison Table

### Family Comparison

| 56F8033| 56F8035| 56F8037| 56F8036

| | |

| | |

| | |

| | |

| | |

| | |

| | |

| | |

| | |

| | |

| | |

| | |
