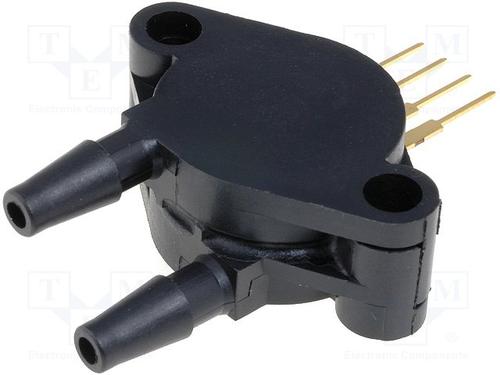

NXP MPX53DP 压力传感器, 差分, 1.2 mV/kPa, 0 kPa, 50 kPa, 3 V, 6 V
The is a silicon piezoresistive Pressure Sensor provide a very accurate and linear voltage output, directly proportional to the applied pressure. The standard, uncompensated sensor permit manufacturers to design and add their own external temperature compensating and signal conditioning networks. Compensation techniques are simplified because of the predictability of s single element strain gauge design.
- .
- Patented silicon shear stress strain gauge design
- .
- Ratiometric to supply voltage
- .
- Differential and gauge options
- .
- 60mV Span typical
电源电压DC 3.00V min
额定电压DC 3.00 V
无卤素状态 Not Halogen Free
输出电压 ≤80.0 mV
供电电流 6.00 mA
针脚数 4
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 3 V
电源电压Max 6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 4
封装 SIP-4
封装 SIP-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Each
制造应用 工业, 机器人, 医用, Robotics, Industrial, Sensing & Instrumentation, 传感与仪器, Motor Drive & Control, 电机驱动与控制, Medical, 板式安装
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
