MDL-LM4F211CNCD概述
Mod Control Card Lm4f211

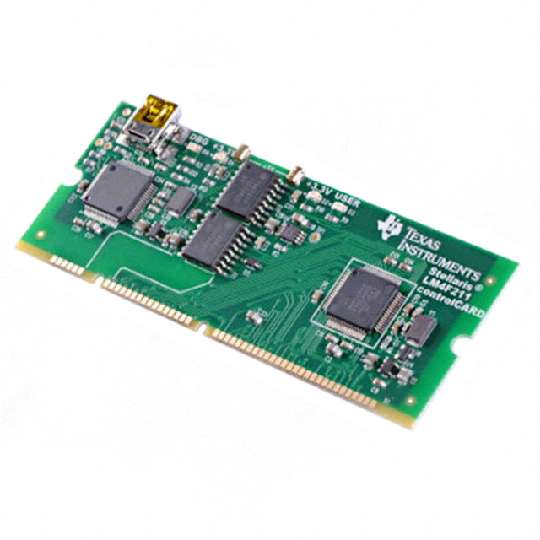

The is a Stellaris LM4F211 control card module for three phase brushless DC motors designed to operate with DRV83xx baseboards. The low cost Stellaris LM4F211 microcontroller on the MDL‑LM4F211CNCD control CARD module comes pre programmed with the necessary firmware in flash memory to run InstaSPIN BLDC motor control solution out of the box. The system automatically spins a user"s three phase brushless DC motor assuming operation with the included 24V, 2.5A supply. The kit also includes a project to spin the included PMSM using a sensorless sliding mode observer FOC technique. The operation of both solutions can be controlled and viewed across a USB interface using an included GUL.
- .
- Stellaris 32bit ARM Cortex M4F LM4F211 MCU with 256KB Flash, 32KB RAM
- .
- Pluggable 64 pin DIMM form factor
- .
- Hardware compatible with other DRV baseboards
- .
- Auto isolation enabling upon debug connection
- .
- 80MHz floating point processor core
- .
- 24V NEMA17 BLDC/PMSM motor
