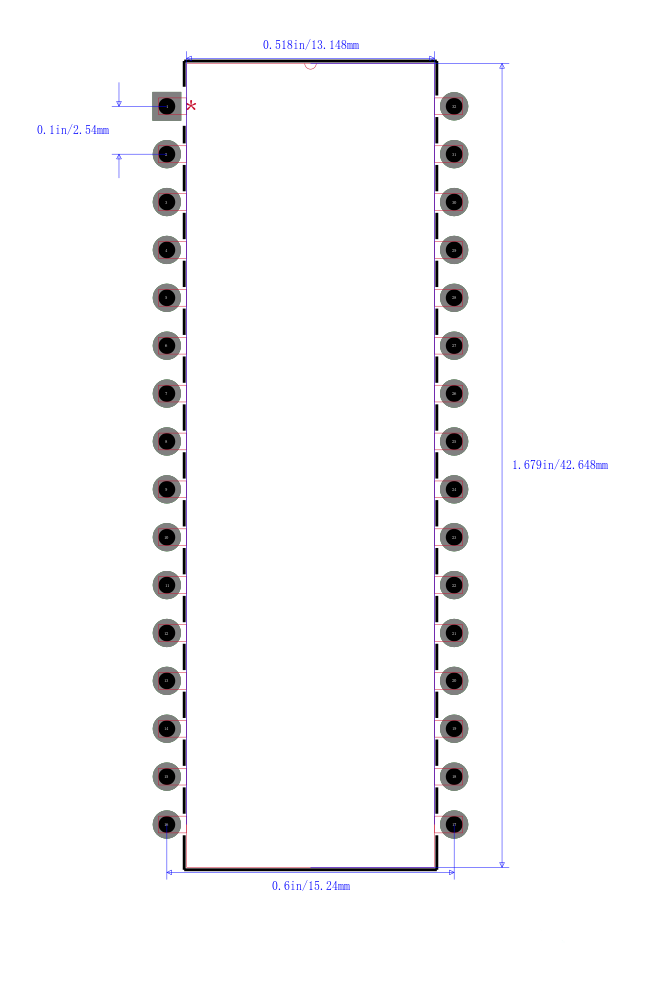

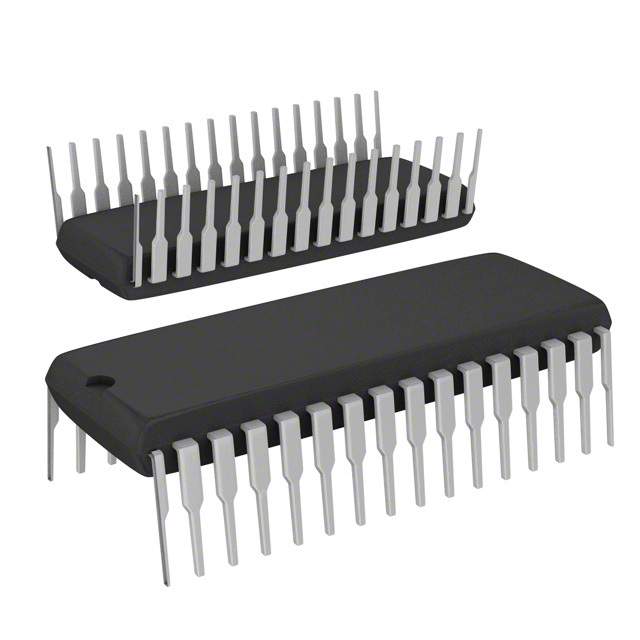

EPROM OTP 1M-bit 128K x 8 120ns 32Pin PDIP Tube
Summary description
The M27C1001 is a 1 Mbit EPROM offered in the two ranges: UV ultra violet erase and OTP one time programmable. It is ideally suited for microprocessor systems requiring large programs and is organized as 131,072 words of 8 bits.

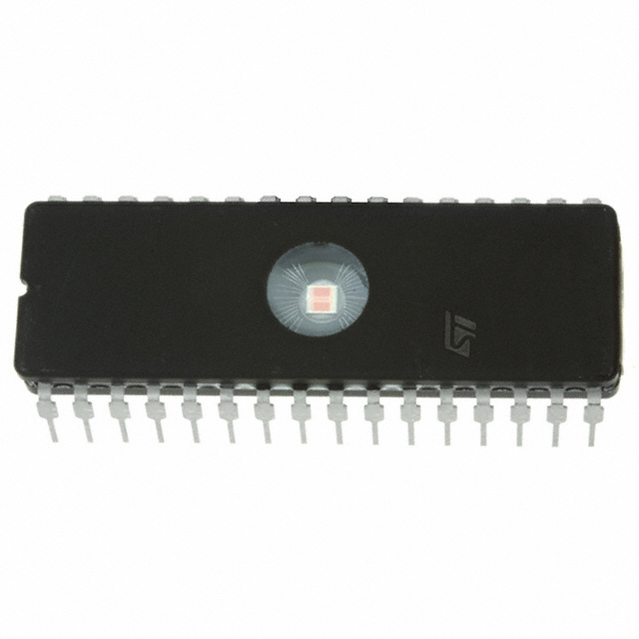

The FDIP32W window ceramic frit-seal package has a transparent lid that enables the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.
Features
■ 5v ± 10% Supply Voltage in Read Operation
■ Access Time: 35ns
■ Low Power Consumption:
– Active Current: 30 mA at 5 MHz
– Standby Current: 100 µA
■ Programming Voltage: 12.75V ± 0.25V
■ Programming Time: 100 µs/word
■ Electronic Signature
– Manufacturer Code: 20h
– Device Code: 05h
■ ECOPACK® packages available
