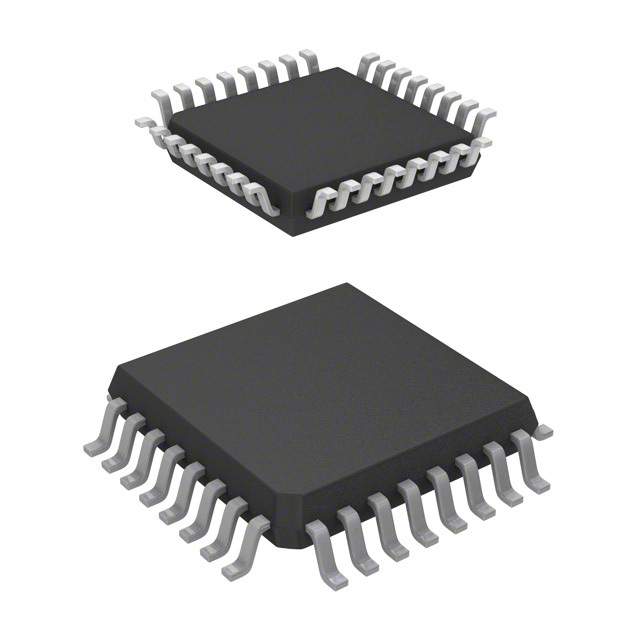

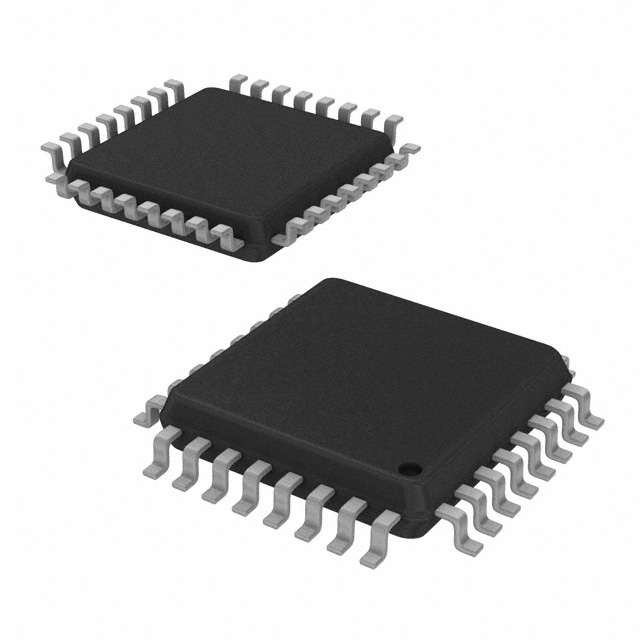

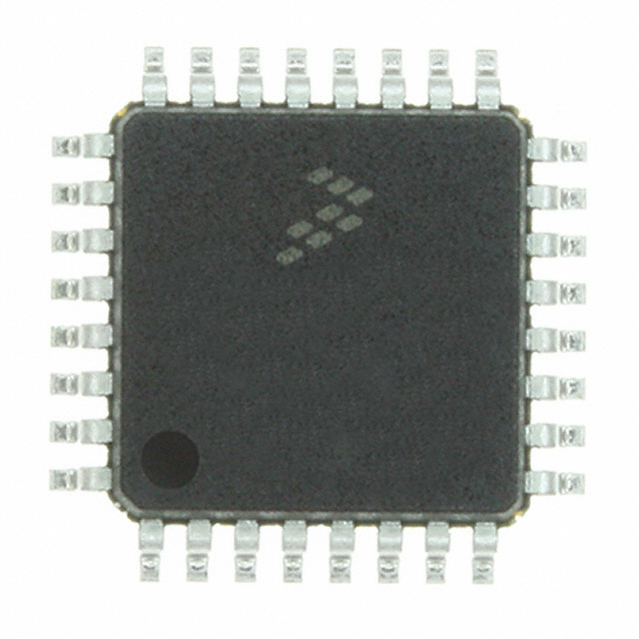

MCU 16Bit MC56F80xx 56800E CISC 12KB Flash 3.3V 32Pin LQFP Tray
56F8013/56F8011 Description
The 56F8013/56F8011 is a member of the 56800E core-based family of Digital Signal Controllers DSCs. It combines, on a single chip, the processing power ofa DSP and the functionality of a microcontroller with a flexible set of peripherals to create an extremely cost-effective solution. Because of its low cost, configuration flexibility, and compact program code, the 56F8013/56F8011 is well-suited for many applications.
56F8013/56F8011 Features
Digital Signal Controller Core
• Efficient 16-bit 56800E family Digital Signal Controller DSC engine with dual Harvard architecture
• As many as 32 Million Instructions Per Second MIPS at 32MHz core frequency
• Single-cycle 16 ×16-bit parallel Multiplier-Accumulator MAC
• Four 36-bit accumulators, including extension bits
• 32-bit arithmetic and logic multi-bit shifter
• Parallel instruction set withunique DSP addressing modes
• Hardware DO and REP loops
• Three internal address buses
• Four internal data buses
• Instruction set supports both DSP and controller functions
• Controller-style addressing modes and instructions for compact code
• Efficient C compiler and local variable support
• Software subroutine and interrupt stack with depth limited only by memory
• JTAG/Enhanced On-Chip Emulation OnCE for unobtrusive, processor speed-independent, real-time debugging
Memory
• Dual Harvard architecture permits as many as three simultaneous accesses to program and data memory
• Flash security and protection that prevent unauthorized users from gaining access to the internal Flash
• On-chip memory:
— 16KB of Program Flash 56F8013 device
12KB of Program Flash 56F8011 device
— 4KB of Unified Data/Program RAM 56F8013 device
2KB of Unified Data/ProgramRAM 56F8011 device
• EEPROM emulation capability using Flash
Peripheral Circuits for 56F8013/56F8011
• One multi-function six-output Pulse Width Modulator PWM module
— Up to 96MHz PWM operating clock
— 15 bits of resolution
— Center-aligned and Edge-aligned PWM signal mode
— Four programmable fault inputs with programmable digital filter
— Double-buffered PWM registers
— Each complementary PWM signal pair can outputdifferent switching frequency by selecting PWM generation sources from:
– PWM generator
– External GPIO
– Internal timers
– ADC conversion resultof over/under limits:
– When the conversion result is greater than high limit, deactivate PWM signal
– When the conversion result is less than low limit, activate the PWM signal
• Two independent 12-bit Analog-to-Digital Converters ADCs
— 2 x 3 channel inputs
— Supports both simultaneous and sequential conversions
— ADC conversions can be synchronized by both PWM and timer modules
— Sampling rate up to 2.67MSPS
— 8-word result buffer registers
— ADC Smart Power Management Auto-standby, auto-powerdown
• One 16-bit multi-purpose Quad Timer module TMR
— Up to 96MHz operating clock
— Four independent 16-bit counter/timers with cascading capability
— Each timer has capture and compare capability
— Up to 12 operating modes
• One Serial Communication Interface SCI with LIN Slave functionality
— Full-duplex or single-wire operation
— Two receiver wake-up methods:
– Idle line
– Address mark
• One Serial Peripheral Interface SPI
— Full-duplex operation
— Master and slave modes
— Programmable Length Transactions 2 to 16 bits
• One Inter-Integrated Circuit I2C port
— Operates up to 400kbps
— Supports both master and slave operation
• Computer Operating Properly COP/Watchdog timer capable of selecting different clock sources
