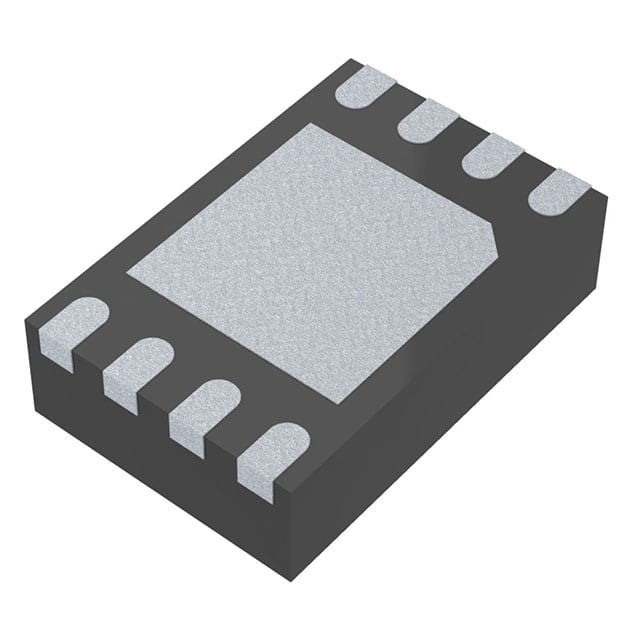

MAX2616ETA+T

射频放大器, 40MHz至4GHz, 18.4dB增益, 2.2dB噪声, 3V至5.25V, TDFN-8

The from Products is a 40MHz to 4GHz linear broadband amplifier in 8 pin TDFN package. This is a family of high performance broadband gain blocks designed for use as a PA predriver, low noise amplifier or as a cascadable 50 ohm amplifier with up to +19.5dBm output power. This device is suited for many applications that include cellular infrastructure, private or commercial microwave radios and CATV or cable modems. The operating frequency range extends from 40MHz to 4000MHz. The amplifier operates on a +3V to a +5.25V supply with input and output ports internally matched to 50 ohm. It is used in cellular infrastructure microwave radio, wireless LAN and test and measurement applications.

.

Large OIP3 ranges of +37dBm

.

Operating temperature range from -40°C to 85°C

.

Extremely flat frequency response < 0.5dB, 1GHz to 4GHz

.

Low noise figure is 2.0dB at fRFIN = 2.0GHz

.

Industry"s highest Max PIN rating

.

Output P1dB of +19.5dBm

.

18.6dB high gain

.

Shutdown mode

.

2.5KV HBM industry-high ESD rating
