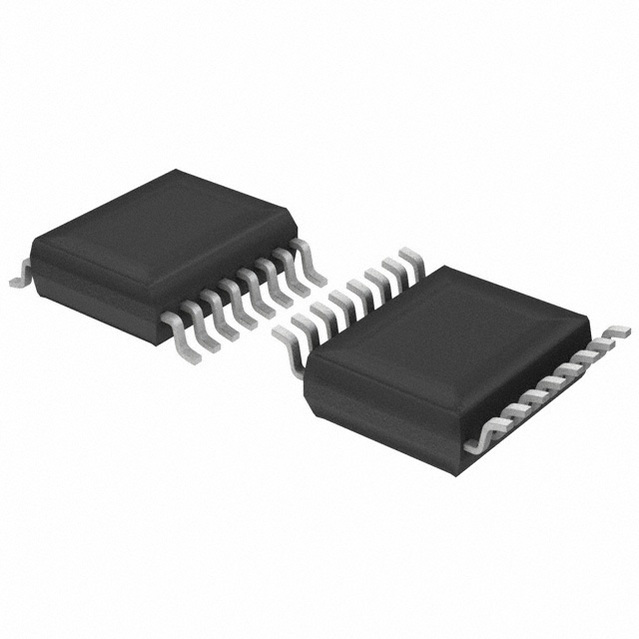

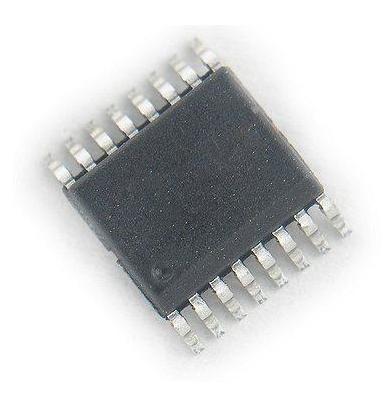

MAX3232ECDBRE4

3V至5.5V多通道RS - 232线路驱动器/接收器【 15千伏IEC ESD保护 3-V TO 5.5-V MULTICHANNEL RS-232 LINE DRIVER/RECEIVER WITH 【15-kV IEC ESD PROTECTION

DESCRIPON

The MAX3232E device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV IEC ESD protection pin to pin serial-port connection pins, including GND. The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/µs driver output slew rate.

FEATURES

• ESD Protection for RS-232 Bus Pins

– ±15 kV HBM

– ±8 kV IEC61000-4-2, Contact Discharge

– ±15 kV IEC61000-4-2, Air-Gap Discharge

• Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards

• Operates With 3-V to 5.5-V VCC Supply

• Operates up to 250 kbit/s

• Two Drivers and Two Receivers

• Low Supply Current . . . 300 µA Typ

• External Capacitors . . . 4 × 0.1 µF

• Accepts 5-V Logic Input With 3.3-V Supply

• Pin Compatible to Alternative High-Speed Device 1 Mbit/s

– SNx5C3232

APPLICATIONS

• Battery-Powered Systems

• PDAs

• Notebooks

• Laptops

• Palmtop PCs

• Hand-Held Equipment
