MJD127

互补达林顿功率晶体管 Complementary Darlington Power Transistor

Complementary Darlington Power Transistor

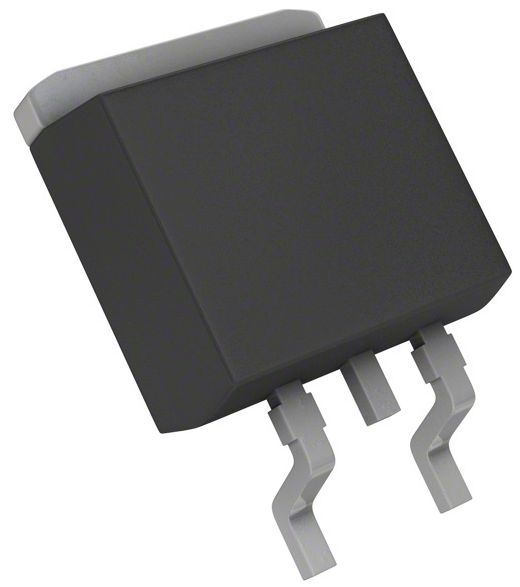

DPAK For Surface Mount Applications

Designed for general purpose amplifier and low speed switching applications.

Features

• Lead Formed for Surface Mount Applications in Plastic Sleeves

• Surface Mount Replacements for 2N6040−2N6045 Series, TIP120−TIP122 Series, and TIP125−TIP127 Series

• Monolithic Construction With Built−in Base−Emitter Shunt Resistors

• High DC Current Gain: hFE = 2500 Typ @ IC = 4.0 Adc

• Epoxy Meets UL 94 V−0 @ 0.125 in

• ESD Ratings:

   ♦ Human Body Model, 3B > 8000 V

   ♦ Machine Model, C > 400 V

• NJV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
