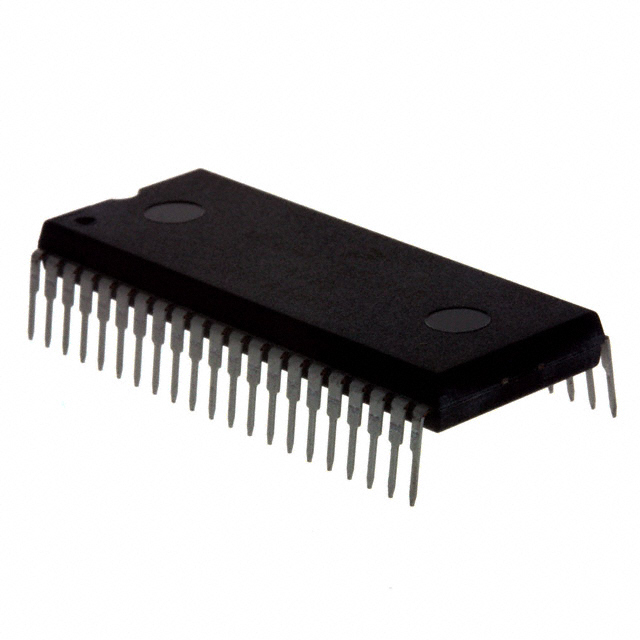

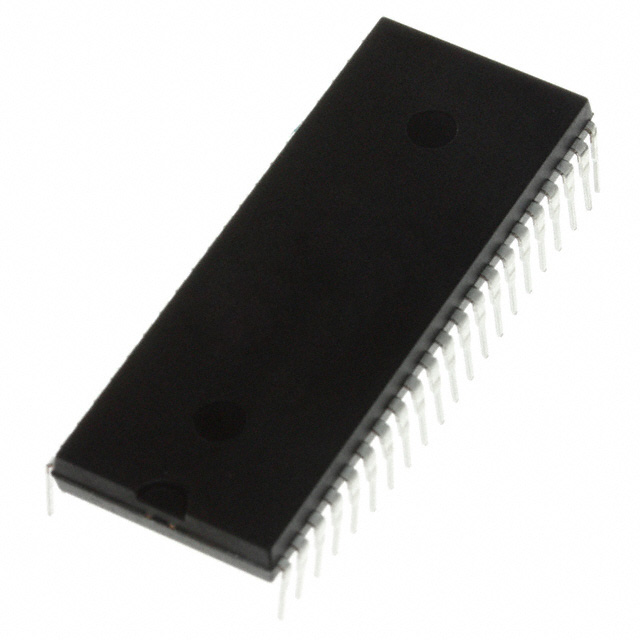

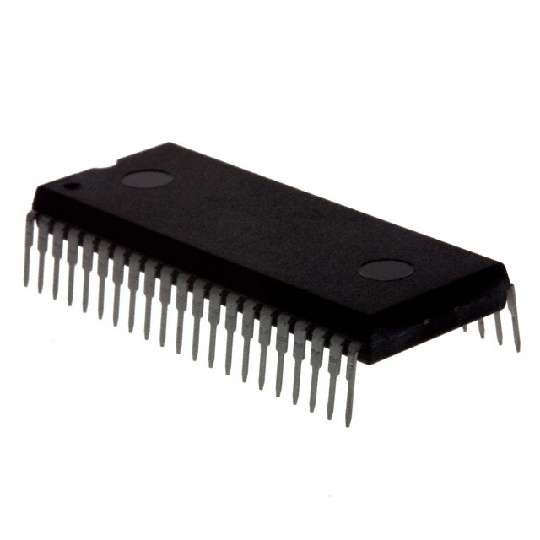

IC MCU 8Bit 16KB FLASH 42DIP
General Description
Introduction
The MC68HC908GT16, MC68HC908GT8, and MC68HC08GT16 are members of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller units MCUs. All MCUs in the family use the enhanced M68HC08 central processor unit CPU08 and are available with a variety of modules, memory sizes and types, and package types.
Features
For convenience, features have been organized to reflect:
• Standard features of the MC68HC908GT16/MC68HC908GT8
• Features of the CPU08
Standard Features of the MC68HC908GT16/MC68HC908GT8
• High-performance M68HC08 architecture optimized for C-compilers
• Fully upward-compatible object code with M6805, M146805, and M68HC05 Families
• 8-MHz internal bus frequency
• Internal oscillator requiring no external components:
– Software selectable bus frequencies
– ±25 percent accuracy with trim capability to ±4 percent
– Clock monitor
– Option to allow use of external clock source or external crystal/ceramic resonator
• Flash program memory security1
• On-chip programming firmware for use with host personal computer which does not require high voltage for entry
• In-system programming ISP
• System protection features:
– Optional computer operating properly COP reset
– Low-voltage detection with optional reset and selectable trip points for 3.0-V and 5.0-V operation
– Illegal opcode detection with reset
– Illegal address detection with reset
• Low-power design; fully static with stop and wait modes
• Standard low-power modes of operation:
– Wait mode
– Stop mode
• Master reset pin and power-on reset POR
• 16 Kbytes of on-chip 100k cycle write/erase capable Flash memory 8 Kbytes on MC68HC908GT8
• 512 bytes of on-chip random-access memory RAM
• 720 bytes of Flash programming routines ROM
• Serial peripheral interface module SPI
• Serial communications interface module SCI
• Two 16-bit, 2-channel timer interface modules TIM1 and TIM2 with selectable input capture, output compare, and pulse-width modulation PWM capability on each channel
• 8-channel, 8-bit successive approximation analog-to-digital converter ADC
• Break module BRK to allow single breakpoint setting during in-circuit debugging
• Internal pullups on IRQ and RST to reduce customer system cost
• Up to 36 general-purpose input/output I/O pins, including:
– 28 shared-function I/O pins
– Six or eight dedicated I/O pins, depending on package choice
• Selectable pullups on inputs only on ports A, C, and D. Selection is on an individual port bit basis.
During output mode, pullups are disengaged.
• High current 10-mA sink/10-mA source capability on all port pins
• Higher current 20-mA sink/source capability on PTC0–PTC4
• Timebase module with clock prescaler circuitry for eight user selectable periodic real-time interrupts with optional active clock source during stop mode for periodic wakeup from stop using an external 32-kHz crystal or internal oscillator
• User selection of having the oscillator enabled or disabled during stop mode
• 8-bit keyboard wakeup port
• Available packages:
– 42-pin shrink dual in-line package SDIP
– 44-pin quad flat pack QFP
• Specific features of the MC68HC908GT16 in 42-pin SDIP are:
– Port C is only 5 bits: PTC0–PTC4
– Port D is 8 bits: PTD0–PTD7; dual 2-channel TIM modules
• Specific features of the MC68HC908GT16 in 44-pin QFP are:
– Port C is 7 bits: PTC0–PTC6
– Port D is 8 bits: PTD0–PTD7; dual 2-channel TIM modules
