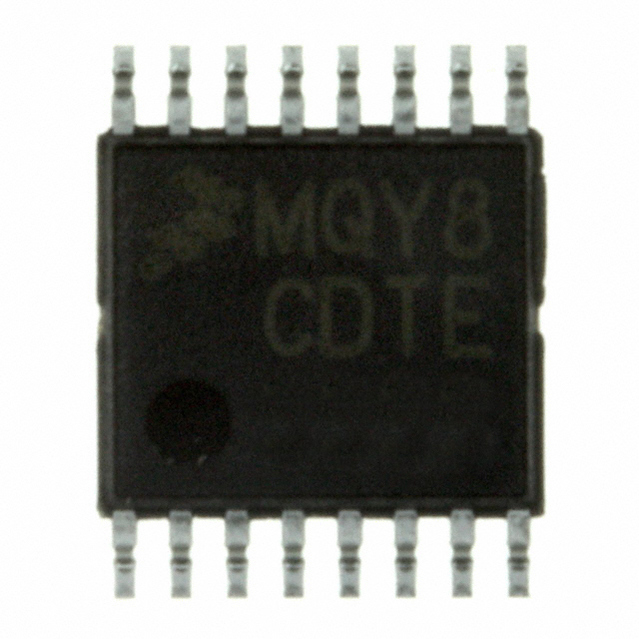

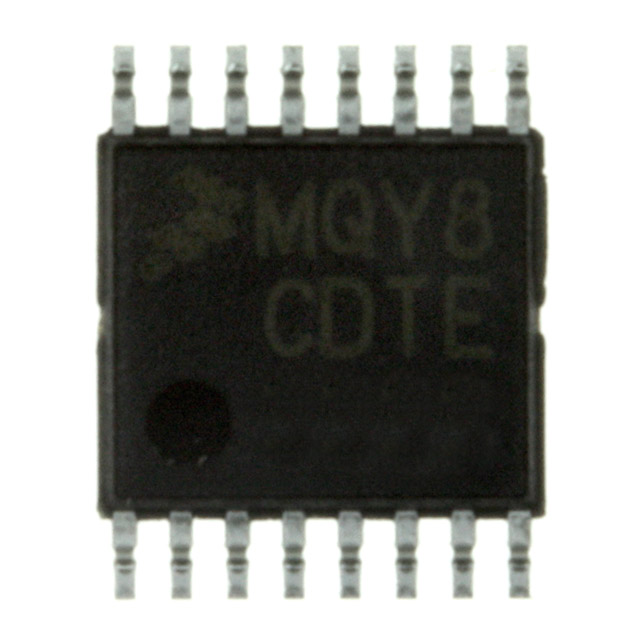

MC908QY8CDTE

MCU 8Bit HC08 HC08 CISC 8KB Flash 3.3V/5V 16Pin TSSOP Rail

The MC68HC908QB8 is a member of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller units MCUs. All MCUs in the family use the enhanced M68HC08 central processor unit CPU08 and are available with a variety of modules, memory sizes and types, and package types.

Features include:

• High-performance M68HC08 CPU core

• Fully upward-compatible object code with M68HC05 Family

• 5-V and 3-V operating voltages VDD

• 8-MHz internal bus operation at 5 V, 4-MHz at 3 V

• Trimmable internal oscillator

– Software selectable 1 MHz, 2 MHz, or 3.2 MHz internal bus operation

– 8-bit trim capability

– ± 25% untrimmed

– Trimmable to approximately 0.4%1

• Software selectable crystal oscillator range, 32–100 kHz, 1–8 MHz, and 8–32 MHz

• Software configurable input clock from either internal or external source

• Auto wakeup from STOP capability using dedicated internal 32-kHz RC or bus clock source

• On-chip in-application programmable FLASH memory

– Internal program/erase voltage generation

– Monitor ROM containing user callable program/erase routines

– FLASH security
