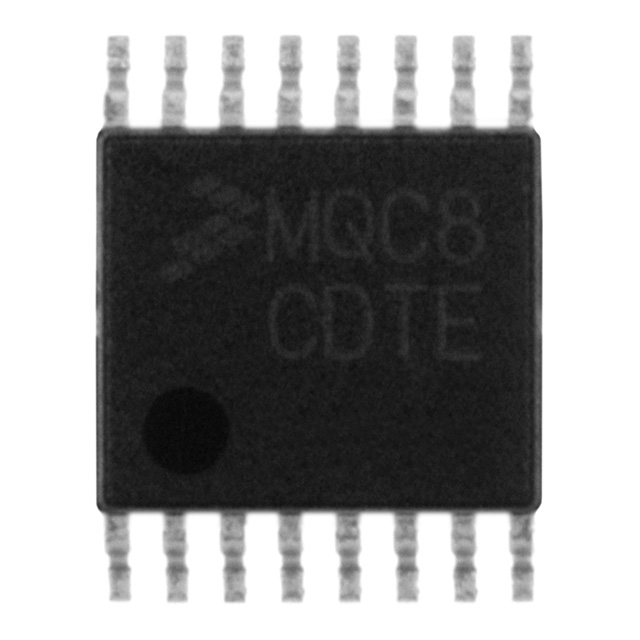

MCU 8Bit HC08 CISC 8KB Flash 3.3V/5V 16Pin TSSOP Rail
The MC68HC908QC16, MC68HC908QC8, and MC68HC908QC4 are members of the low-cost,
high-performance M68HC08 Family of 8-bit microcontroller units MCUs. All MCUs in the family use the
enhanced M68HC08 central processor unit CPU08 and are available with a variety of modules, memory
sizes and types, and package types.
得捷:
IC MCU 8BIT 8KB FLASH 16TSSOP
贸泽:
8-bit Microcontrollers - MCU 8BIT MCU 8KFLASH PB FREE
罗切斯特:
MCU 8-bit HC08 CISC 8KB Flash 3.3V/5V 16-Pin TSSOP Rail
电源电压DC 5.00 V, 5.50 V max
无卤素状态 Halogen Free
时钟频率 8.00 MHz, 8.00 MHz max
RAM大小 384 x 8
I/O引脚数 13
存取时间 8.00 µs
内核架构 HC08
工作温度Max 85 ℃
工作温度Min 40 ℃
电源电压Max 5.5 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 16
封装 TSSOP-16
长度 5 mm
宽度 4.4 mm
高度 1.05 mm
封装 TSSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
