MDP-S-2概述

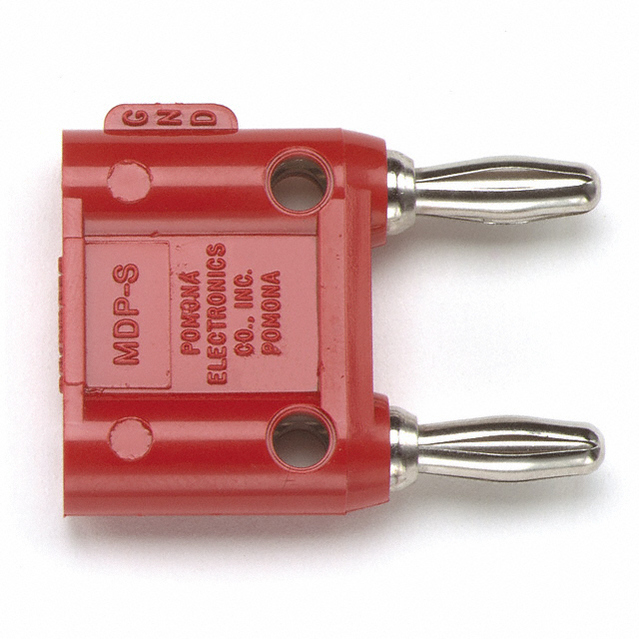

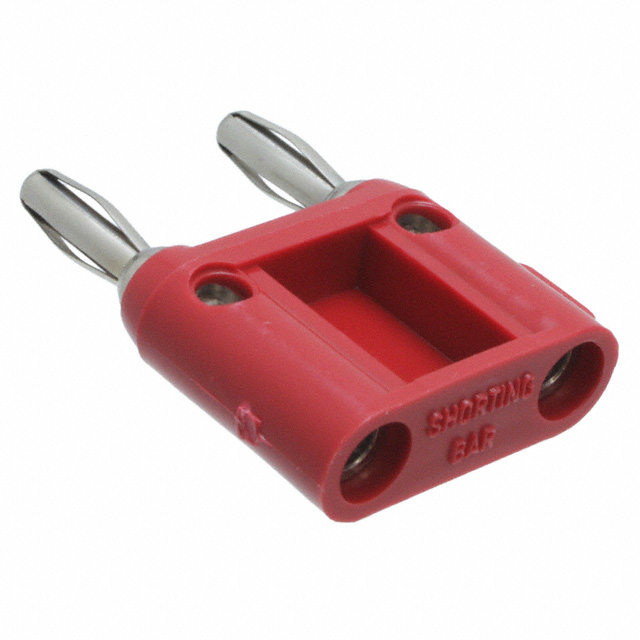

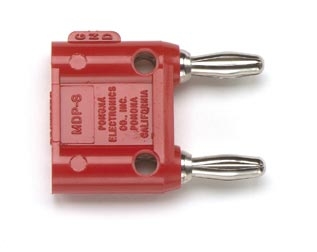

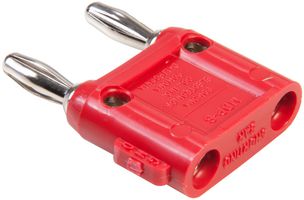

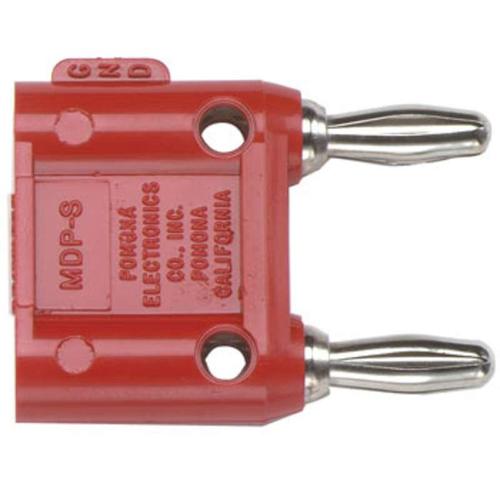

POMONA  MDP-S-2  双香蕉插头, 2X 4MM 带短路条 红色

The is a red insulation Double Banana Plug with shorting bar and stackable. Banana plugs are internally shorted with #18AWG wire. Banana plugs can be vertically and horizontally stacked for test versatility. Banana plug springs are nickel plated, beryllium copper for long insertion cycle life. Brass nickel plated body and polypropylene insulation.


得捷:
CONN DBL BAN PLG STACK SLDRLESS


立创商城:
MDP-S-2


贸泽:
测试插头和测试插座 RED/DBL BANANA


e络盟:
双香蕉连接器, 公带可堆叠, 红色


艾睿:
Never worry about not being able to perform test by using this banana plug MDP-S-2 test terminal block from Pomona. This PL connector&s;s 2 contacts that are made out of beryllium copper and plated with nickel. This connector has a single port. It has a straight body orientation. It has a plug type gender. This device has a maximum current rating of 15 A. This product is 40.13 mm long, 9.65 mm tall and 25.22 mm deep. Its wire is 18 AWG. MDP-S-2 is housed in red acrylonitrile butadiene styrene.


Allied Electronics:
Banana Plug With Shorting Bar, Double, Red


Verical:
Conn Banana Plug PL 2 POS ST Cable Mount 1 Port


Newark:
# POMONA  MDP-S-2  Double Banana Plug with Shorting Bar Stackable, Red


MASTER:
Conn Banana Plug PL 2 POS ST Cable Mount 1 Port


Electro Sonic:
Conn Banana Plug PL 2 POS ST Cable Mount 1 Port


MDP-S-2中文资料参数规格
技术参数

触点数 2

极性 Male

线规 18 AWG

触点电镀 Nickel

额定电压DC 5.00 kV

额定电流 15 A

额定电流Max 15 A

工作温度Max 50 ℃

额定电压 5 kV

封装参数

安装方式 Quick Connect

封装 -

引脚间距 0.75 in

外形尺寸

高度 9.65 mm

封装 -

引脚间距 0.75 in

物理参数

外壳颜色 Red

颜色 Red

触点材质 Brass

绝缘材质 Acrylonitrile Butadiene Styrene ABS

工作温度 50 ℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 Test & Measurement, Manufacturing, 计算机硬件, Calibration, 测试与测量, Electrical, 仪器仪表, Sound & Video, Aerospace, 生产制造, 航天, 电气, Instrumentation, 研究开发, Computer Hardware, 校准, Research & Development, 声音和视频, 电子设计, Electronics Design

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

HTS代码 8536694050

数据手册

在线购买MDP-S-2
型号: MDP-S-2
制造商: Pomona Electronics
描述:POMONA  MDP-S-2  双香蕉插头, 2X 4MM 带短路条 红色
替代型号MDP-S-2
型号/品牌 代替类型 替代型号对比

MDP-S-2

Pomona Electronics

当前型号

当前型号

MDP-S-0

Pomona Electronics

完全替代

MDP-S-2和MDP-S-0的区别

MDP-S-9

Pomona Electronics

完全替代

MDP-S-2和MDP-S-9的区别
