MDP-S-9

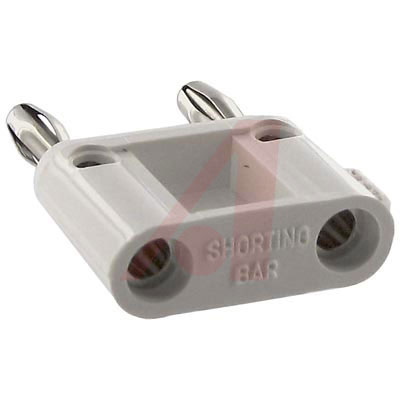

POMONA  MDP-S-9  香蕉插头, 双路, 短路条, 15A, 白色

Double banana jack — 4.22 mm 0.166 dia., brass, nickel-plated. Double banana plug, spring — One piece heat treated beryllium copper, nickel-plated. Fits standard 4.22 mm 0.166 dia. banana jack.

Banana plug internally shorted with #18 AWG wire. Banana jacks provide top stackup. Cross holes 4.22 mm 0.166 dia. in body provide side stackup connections. ABS Insulation.

得捷:
CONN DBL BAN PLUG STACK SLDRLESS

e络盟:
双香蕉连接器, 公带可堆叠, 白色

艾睿:
The easy-to-use banana plug MDP-S-9 test terminal block from Pomona makes it possible to test any abnormal connections your application may have. This PL connector&s;s 2 contacts that are made out of beryllium copper and plated with nickel. This connector has a single port. It has a plug type gender. It has a straight body orientation. This device has a maximum current rating of 15 A. This product is 40.13 mm long, 9.65 mm tall and 25.22 mm deep. MDP-S-9 is housed in white acrylonitrile butadiene styrene. Its wire is 18 AWG.

Allied Electronics:
Banana Plug With Shorting Bar, Double, White

Newark:
# POMONA  MDP-S-9  Double Banana Plug with Shorting Bar Stackable, White

MASTER:
Conn Banana Plug PL 2 POS ST Cable Mount 1 Port

Online Components:
Conn Banana Plug PL 2 POS ST Cable Mount 1 Port

Electro Sonic:
Conn Banana Plug PL 2 POS ST Cable Mount 1 Port
