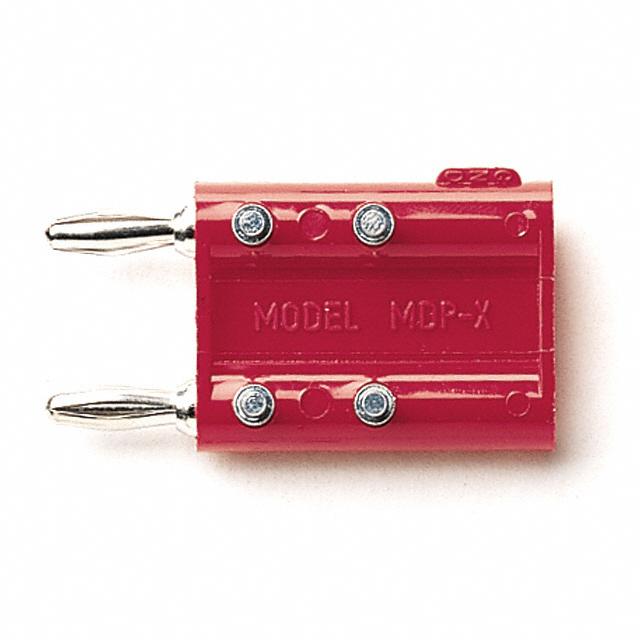

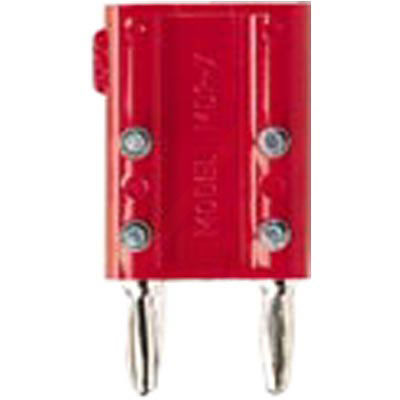

POMONA MDP-X 双香蕉插头, 15A, 焊接, 红色
The is a Double Banana Plug with four isolation solder terminals. Top stack-up receptacles isolated from lower plugs. Ideal for insertion of matching network in laboratory VTM"s signal generators, etc. Bright tin plated solder turret terminals for permanent noise-free connections. Banana plug and jack is made of brass as per QQ-B-626 with nickel plated finish as per QQ-N-290.
得捷:
CONN DBL BAN PLUG STACK SLDR RED
立创商城:
MDP-X
e络盟:
双香蕉连接器, 公带隔离焊接端子, 红色
艾睿:
Easily connect nontraditional adaptors to a test machine by using this banana adapter MDP-X test terminal block manufactured from Pomona. This F/PL connector&s;s 2 / 2 contacts that are made out of brass alloy/beryllium copper and plated with nickel. This connector has 2 ports. It has a straight body orientation. This device has a maximum current rating of 15 A. This test terminal block has a maximum operating temperature of 55 °C. This product is 54.1 mm long, 14.22 mm tall and 30.22 mm deep. MDP-X is housed in red polypropylene.
Allied Electronics:
Banana Plug with Isolation, Double, Solder Terminals
Verical:
Conn Banana Adapter F/PL 2/2 POS ST 2 Port
Newark:
# POMONA MDP-X Double Banana Plug with Isolation Solder Terminals, Red
MASTER:
Conn Banana Adapter F/PL 2/2 POS ST 2 Port
Electro Sonic:
Conn Banana Adapter F/PL 2/2 POS ST 2 Port
触点数 2
极性 Male
线规 18.0 AWG
触点电镀 Nickel
额定电压DC 2.50 kV
额定电流 15 A
额定电流Max 15 A
工作温度Max 55 ℃
额定电压 2.5 kV
安装方式 Screw, Panel
封装 -
引脚间距 0.75 in
高度 14.22 mm
封装 -
引脚间距 0.75 in
外壳颜色 Red
颜色 Red
触点材质 Beryllium Copper
绝缘材质 Polypropylene
工作温度 55 ℃
产品生命周期 Active
包装方式 Bulk
制造应用 电子设计, Research & Development, 航天, Calibration, Aerospace, Sound & Video, Test & Measurement, 计算机硬件, Electronics Design, Manufacturing, 声音和视频, Computer Hardware, Electrical, 电气, Instrumentation, 仪器仪表, 研究开发, 校准, 测试与测量, 生产制造
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8536694050
