MAX9150EUI+

MAXIM INTEGRATED PRODUCTS  MAX9150EUI+  驱动器, LVDS, 公差, LVDS 中继器, 120 ps, 160 mA, -40 °C, 85 °C, 3 V

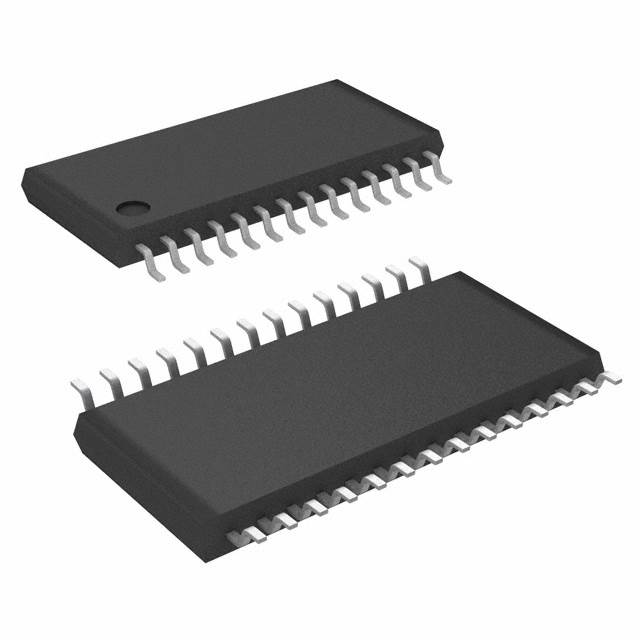

The is a low jitter, 10port LVDS repeater in 28 pin TSSOP package. This low voltage differential signalling LVDS repeater is designed for applications that require high-speed data or clock distribution while minimizing power, space and noise. The device accepts a single LVDS input and repeats the signal at 10 LVDS outputs. Each differential output drives a total of 50ohm, allowing point to point distribution of signals on transmission lines with 100ohm terminations on each end. Ultra-low 120ps max peak to peak jitter deterministic and random ensures reliable communication in high speed links that are highly sensitive to timing error, especially those incorporating clock-and-data recovery or serializers and deserializers. The high-speed switching performance guarantees 400Mbps data rate and less than 100ps skew between channels while operating from a single +3.3V supply.

.

Supply voltage range is 3V to 3.6V

.

Operating temperature range from -40°C to 85°C

.

Supply current is 160mA at 400Mbps

.

Shutdown supply current is 60µA

.

Conforms to EIA/TIA-644 LVDS standard

.

Fail-safe circuit sets output high for undriven inputs

.

High-impedance LVDS input when VCC = 0V
