MAX4616EUD+

MAXIM INTEGRATED PRODUCTS  MAX4616EUD+  模拟开关, 低电压, SPST, 4 放大器, 60 ohm, 2V 至 5.5V, TSSOP, 14 引脚

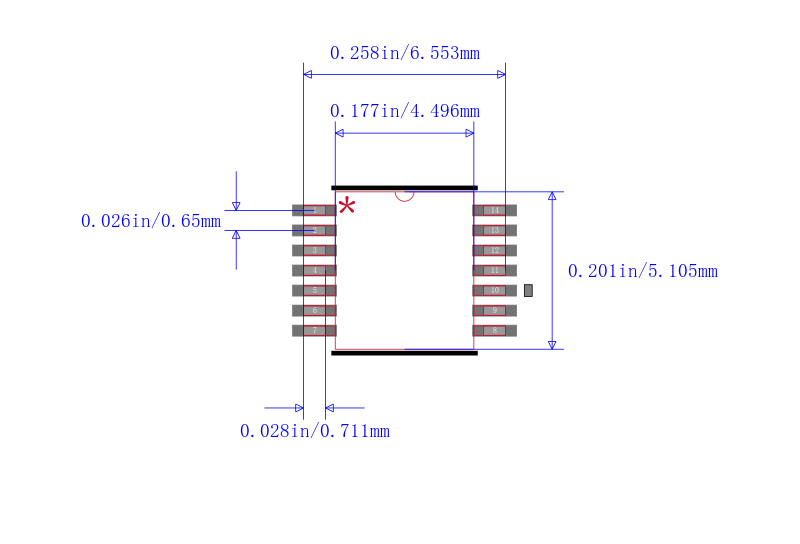

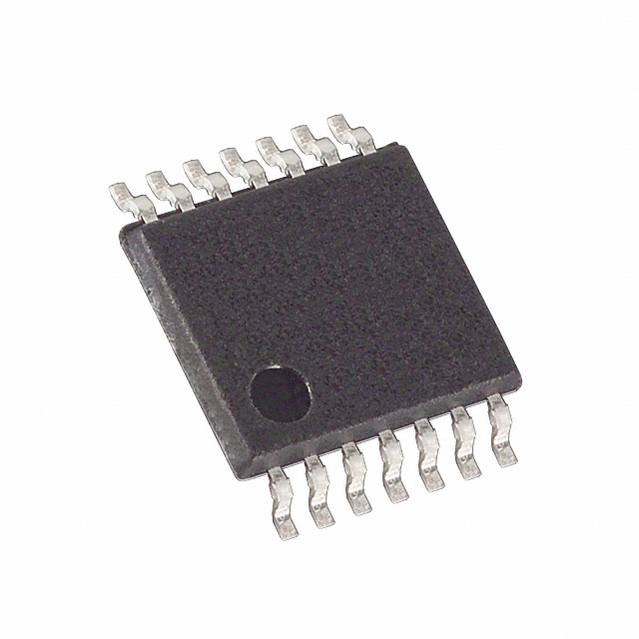

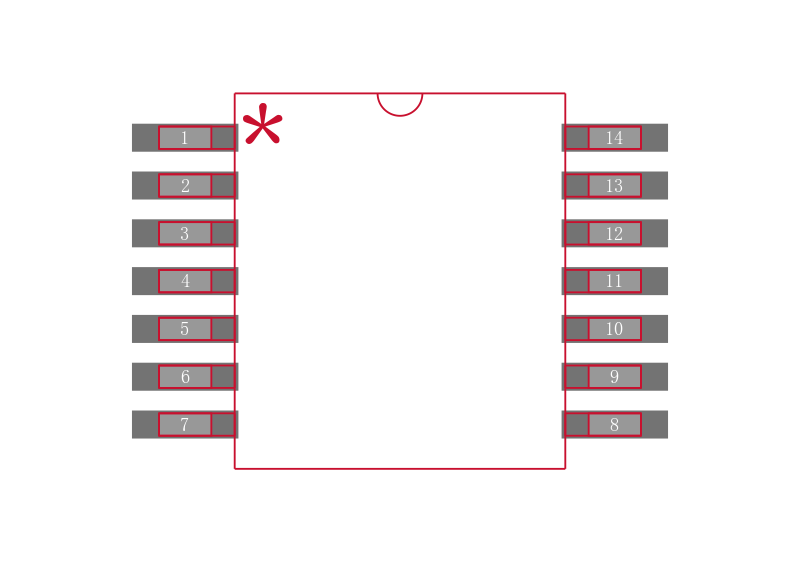

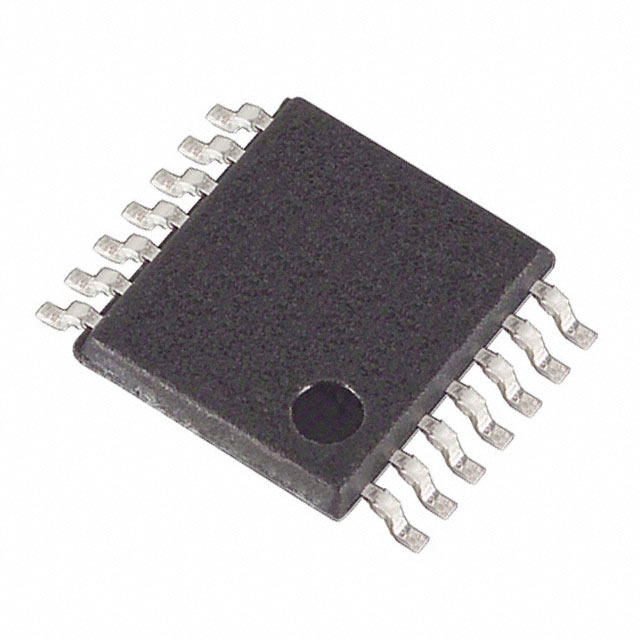

The is a low voltage, high speed, quad, SPST CMOS analogue switch in 14 pin TSSOP package. This single-pole/single-throw SPST analogue switch is pin compatible with the industry standard 74HC4066/MAX4610 analogue switches. The on-resistance 10 ohm max is matched between switches to 1ohm max and is flat 1ohm max over the specified signal range. Each switch handles V+ to GND analogue signal levels. It has maximum off-leakage current of only 1nA at TA = +25°C and 6nA at TA = +85°C. This device is used in sample and hold circuits, battery operated equipment and low voltage data acquisition systems.

.

Supply voltage range is 2V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

Fast switching times are 12ns tON and 10ns tOFF at TA = +25°C, VCOM_ = 3V, single +5V supply

.

Maximum on-resistance of 60 ohm at TA = +25°C single +2.5V supply

.

Rail to rail signal handling

.

TTL/CMOS logic compatible

.

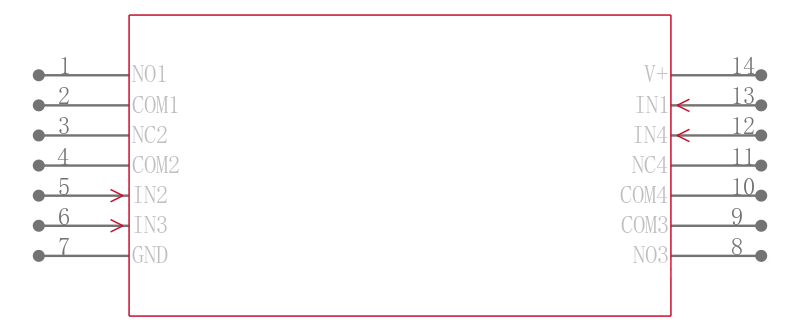

Two normally open NO switches and two normally closed NC switches

.

Charge injection is 6.5pC

.

Crosstalk of -96dB at RL = 50 ohm, f = 100KHz single +5V supply

.

On-channel bandwidth of 70MHz at signal = 0dBm, TA = +25°C single +5V supply
