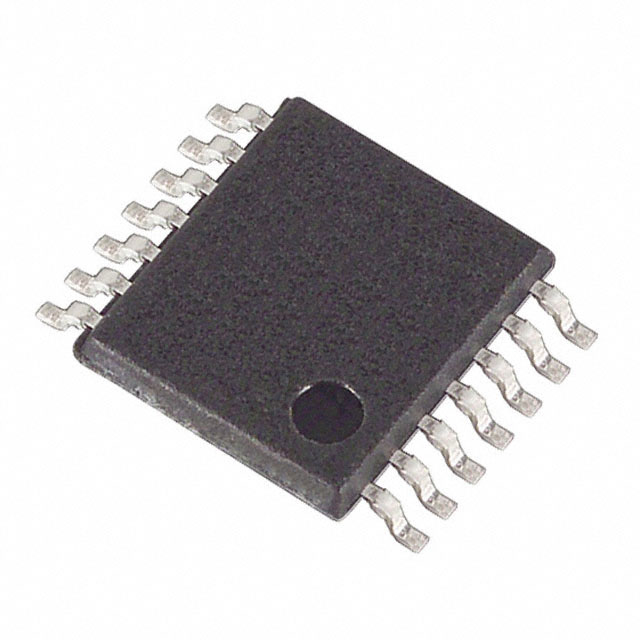

MAX4616CUD+概述

模拟开关, 4 放大器, SPST-常闭, SPST-常开, 20 ohm, 2V 至 5.5V, TSSOP, 14 引脚

The from Products is a low voltage, high speed, quad, SPST CMOS analogue switch in 14 pin TSSOP package. This analogue switch is pin compatible with the industry standard 74HC4066/MAX4610 analogue switches. On-resistance 10 ohm max is matched between switches to 1ohm max and is flat 1ohm max over the specified signal range. Each switch handles V+ to GND analogue signal levels. Maximum off-leakage current is only 1nA at TA = +25°C and 6nA at TA = +85°C. All digital inputs have +0.8V and +2.4V logic thresholds ensuring TTL/CMOS logic compatibility when using a single 5V supply. Typical used at battery operated equipment, audio/video signal routing, low voltage data acquisition systems, communication circuits, sample and hold circuits.

.
Supply voltage of 2V to 5.5V
.
Operating temperature range from 0°C to 70°C
.
Two NO and two NC switch
.
Fast switching times, 12ns tON and 10ns tOFF
.
<6nA off leakage current over temperature TA = +85°C
.
Rail to rail signal handling
MAX4616CUD+中文资料参数规格
技术参数

供电电流 1 µA

电路数 4

通道数 4

针脚数 14

工作温度Max 70 ℃

工作温度Min 0 ℃

3dB带宽 70 MHz

电源电压 2V ~ 5.5V

封装参数

安装方式 Surface Mount

封装 TSSOP-14

外形尺寸

封装 TSSOP-14

物理参数

工作温度 0℃ ~ 70℃ TA

其他

产品生命周期 Unknown

包装方式 Tube

制造应用 信号处理, 音频

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

MAX4616CUD+引脚图与封装图

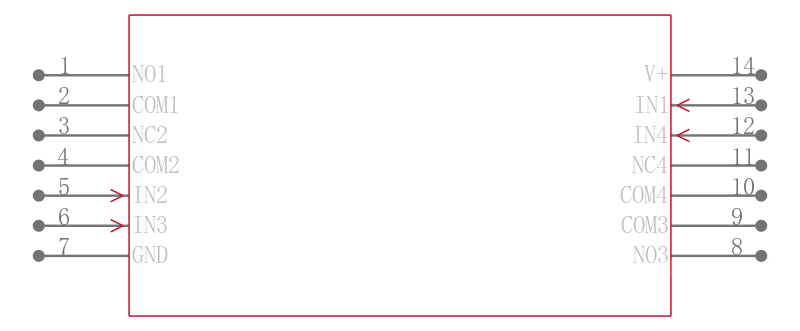

MAX4616CUD+引脚图

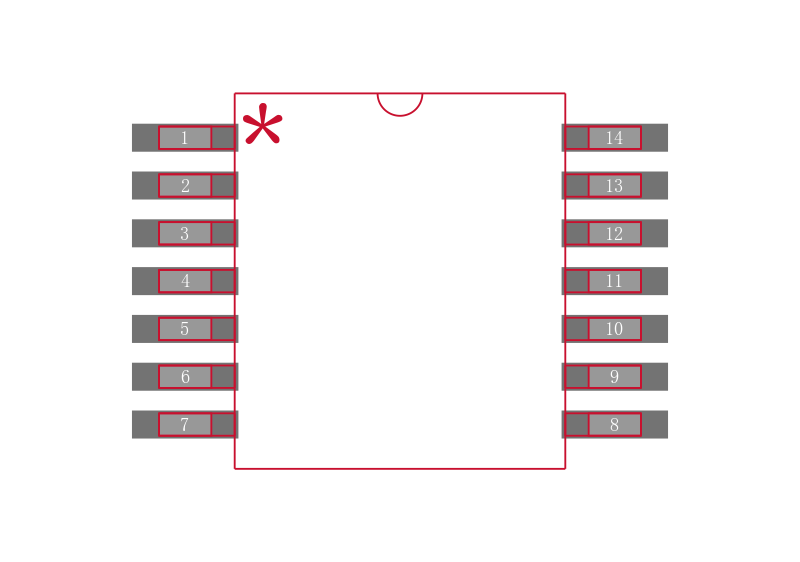

MAX4616CUD+封装图

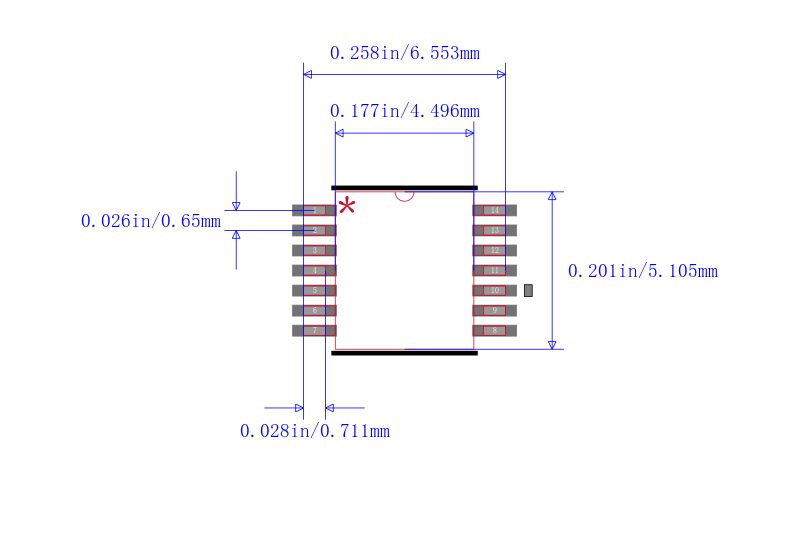

MAX4616CUD+封装焊盘图
在线购买MAX4616CUD+
型号: MAX4616CUD+
描述:模拟开关, 4 放大器, SPST-常闭, SPST-常开, 20 ohm, 2V 至 5.5V, TSSOP, 14 引脚
替代型号MAX4616CUD+
型号/品牌 代替类型 替代型号对比

MAX4616CUD+

Maxim Integrated 美信

当前型号

当前型号

MAX4616CUD+T

美信

完全替代

MAX4616CUD+和MAX4616CUD+T的区别

MAX4616EUD

美信

完全替代

MAX4616CUD+和MAX4616EUD的区别

MAX4616CUD

美信

完全替代

MAX4616CUD+和MAX4616CUD的区别
