MAX4525CUB+

MAXIM INTEGRATED PRODUCTS  MAX4525CUB+  模拟开关, CMOS, DPDT, 1 放大器, 150 ohm, 2V 至 12V, µMAX, 10 引脚

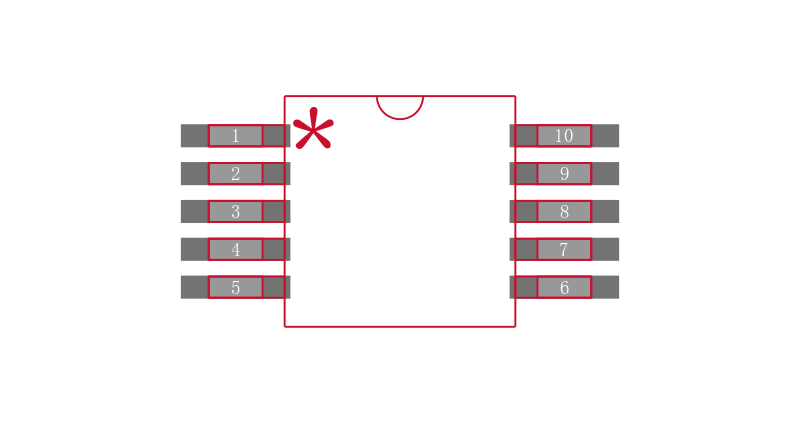

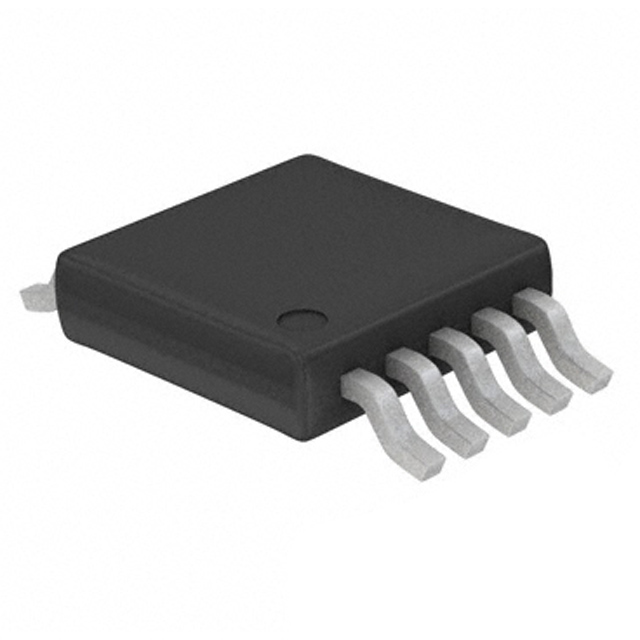

The is a low voltage, single supply, CMOS analogue DPDT switch in 10 pin µMAX package. It has an inhibit input to simultaneously open all signal paths. This device operates from a single supply of 2V to 12V and it is optimized for operation with 3V or 5V supplies. On-resistance is 150 ohm with a +5V supply and 400 ohm with a +3V supply at TA = +25°C. Each switch can handle rail to rail analogue signals. The off leakage current is 1nA at 25°C or 25nA at +85°C. All digital inputs have 0.8V to 2.4V logic thresholds ensuring TTL/CMOS logic compatibility when using single +5V supply. The MAX4525 is used in battery operated equipment, audio and video signal routing, low voltage data acquisition systems.

.

Supply voltage range is 2V to 12V

.

Operating temperature range from 0°C to 70°C

.

Maximum on-resistance match between channels is 10 ohm at TA = +25°C with single 5V supply

.

Maximum on-resistance flatness is 12ohm at TA = +25°C with single 5V supply

.

COM on-leakage current of ±1nA at TA = +25°C with single 5V supply

.

Charge injection of 0.8pC with single 5V supply

.

Off isolation of -75dB at RL = 50 ohm, f = 1MHz with single 5V supply

.

Channel to channel crosstalk of -74dB at RL = 50 ohm, f = 1MHz with single 5V supply

.

Power supply current of ±1µA at TA = +25°C with single 5V supply
