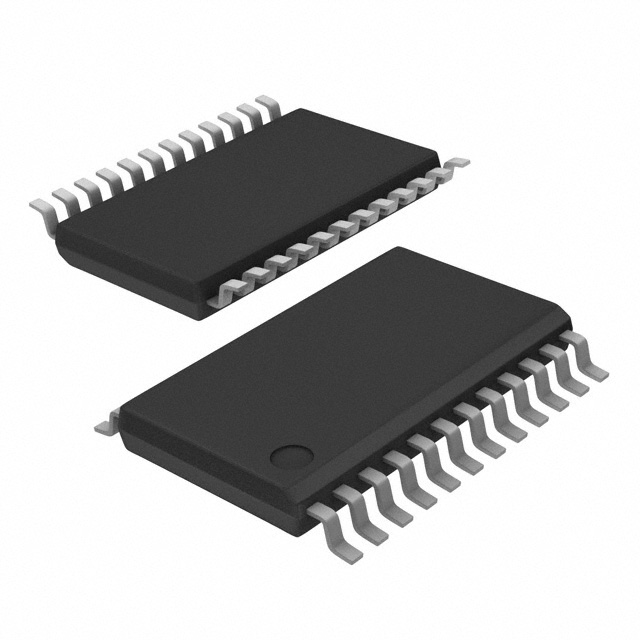

MAXIM INTEGRATED PRODUCTS MAX7356EUG+ 芯片, 多路复用器
The is a 8-channel I²C switches/multiplexers in 24 pin TSSOP package. The device operates in basic mode which expands I2C bus to any combination of 8 extended I2C buses. It enables a master on the main bus to isolate and communicate with devices or groups of devices that may otherwise have slave address conflicts. Any extended bus can be connected or disconnected by control packets from the main I2C bus writing to the main control register of these I2C switches. MAX7356 is transparent to signals sent and received at each channel which allows multiple masters.
电源电压DC 2.30V min
通道数 2
针脚数 24
耗散功率 1.111 W
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 24
封装 TSSOP-24
封装 TSSOP-24
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Each
制造应用 I²C, Communications & Networking, Automation & Process Control, 通信与网络, 自动化与过程控制
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX7356EUG+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX7356EUG+T 美信 | 类似代替 | MAX7356EUG+和MAX7356EUG+T的区别 |
