MAX4989ETD+T

USB Power SW Octal 14Pin TDFN EP T/R

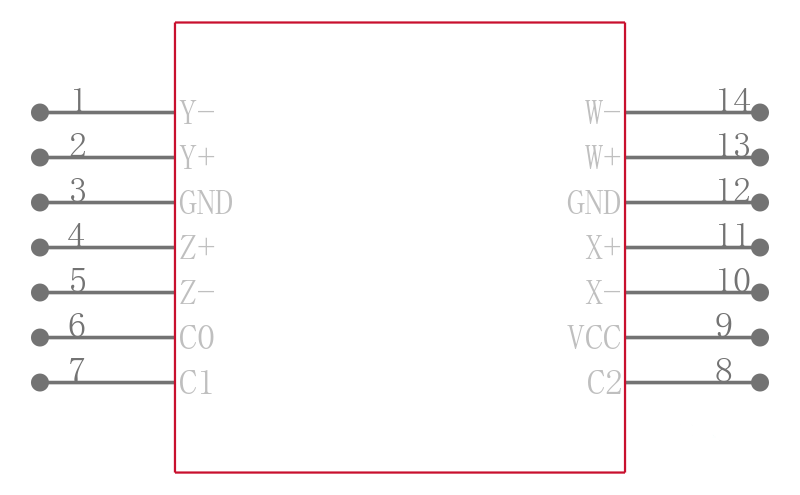

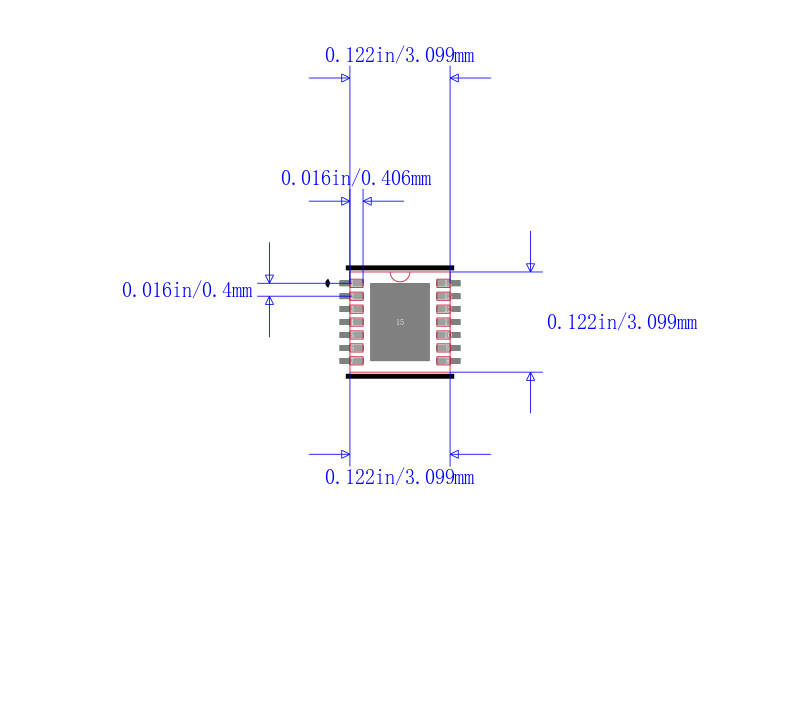

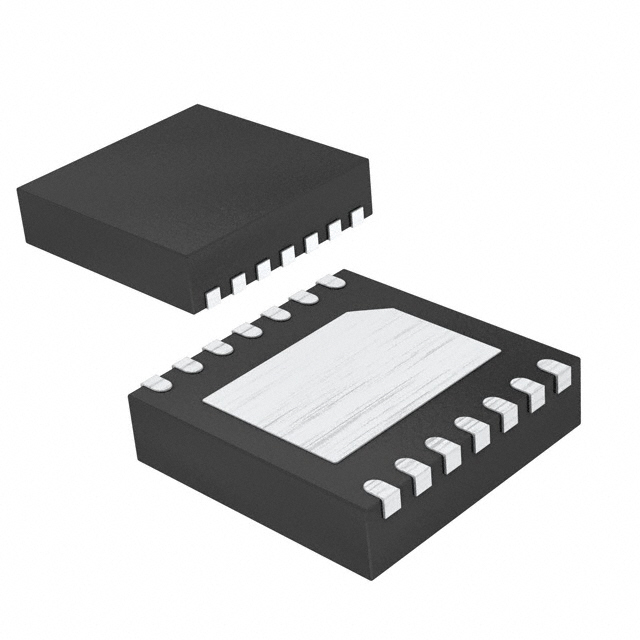

The is a bidirectional USB 2.0 hi-speed 2 of 4 crosspoint switch in 14 pin TDFN package. It has low on-capacitance and low on-resistance necessary to switch USB 2.0 low/full/hi-speed signals at data rates up to 480Mbps. This device allows any 2 of 4 USB pairs to be connected together and is configured through simple 3 input control logic interfaces. The MAX4989 operates from a single 2.7V to 5.5V supply and features an internal charge pump to permit full rail to rail swing. This device also features a high impedance shutdown mode to reduce supply current to 100nA.

.

On-channel -3dB bandwidth of 1GHz

.

Operating temperature range from -40°C to 85°C

.

Low supply current of 1µA at VCC = 3.3V and 3µA at VCC = 5.5V

.

5ohm low on-resistance, 0.5ohm on-resistance match between channels & 0.4ohm on-resistance flatness

.

High impedance shutdown mode

.

Logic inputs control signal routing

.

1.8V CMOS logic compatible

.

Propagation delay of 120ps

.

Off-leakage current of ±1µA and on-leakage current of ±1µA

.

Off-isolation of -43dB at f = 10MHz and crosstalk of -50dB at f = 50MHz
