MAX4733EUA+

MAXIM INTEGRATED PRODUCTS  MAX4733EUA+  模拟开关, 低功率, SPST, 2 放大器, 50 ohm, 2V 至 11V, µMAX, 8 引脚

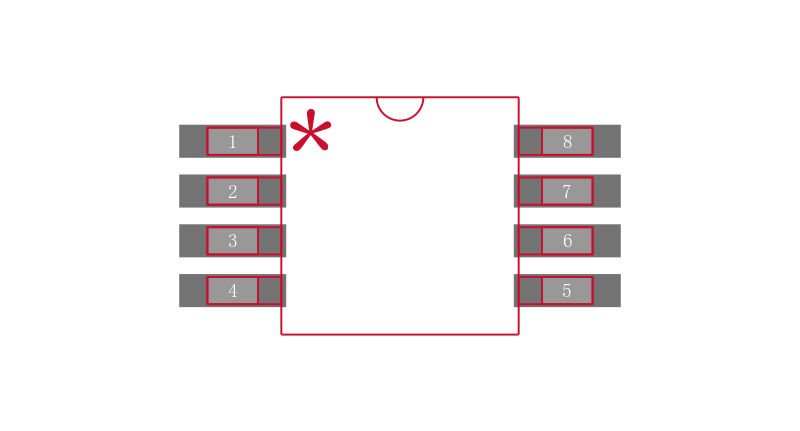

The is a 50 ohm, dual SPST analogue switch in 8 pin µMAX package. This analogue switch operates from a single supply and handles rail to rail analogue signals. When powered from a +3V supply, switch features 50 ohm max on-resistance RON with 3.5ohm max matching between channels and 9ohm max flatness over the specified signal range. It exhibit low leakage current 0.1nA and consume less than 0.5nW typ of quiescent power making it ideal for battery powered applications. It is also used in low voltage data acquisition systems, cell phones, communications circuits, audio/video signal routing and PDAs.

.

Supply voltage range is 2V to 11V

.

Operating temperature range from -40°C to 85°C

.

One normally open NO switch and one normally closed NC switch

.

Features break before make function

.

On-resistance matching of 3ohm max at +5V, on-resistance RON of 25ohm max at +5V

.

Leakage current is < 0.1nA at TA = +25°C

.

TTL/CMOS-logic compatible

.

Crosstalk of -108dB at 1MHz

.

Off-isolation of -72dB at 1MHz

.

On-channel -3dB bandwidth is 300MHz
