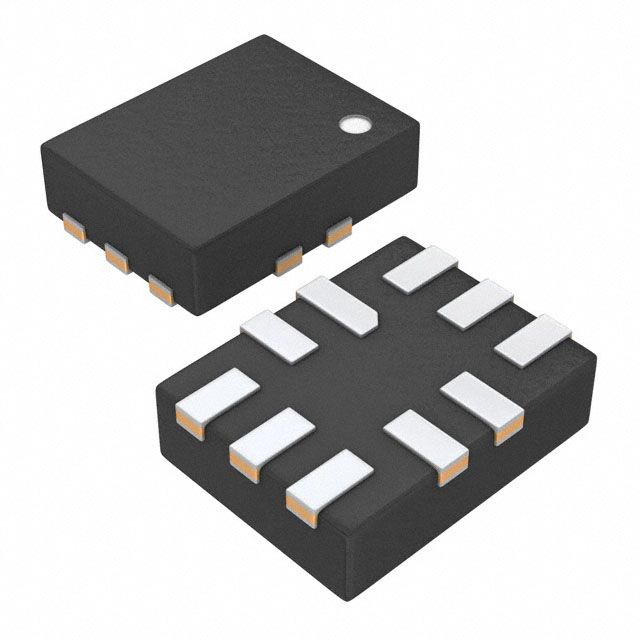

MAXIM INTEGRATED PRODUCTS MAX4983EEVB+ 模拟开关, DPDT, 2 放大器, 10 ohm, 2.8V 至 5.5V, µTQFN, 10 引脚
The is a hi-speed USB 2.0 DPDT switch with ±15V ESD protection in 10 pin µTQFN package. This analogue switch combines low on-capacitance and low on-resistance necessary for high performance switching applications. COM1 and COM2 pins are protected against ±15KV ESD ±15KV human body model, ±15KV IEC 61000-4-2 air gap and ±8KV IEC 61000-4-2 contact without latch-up or damage. The device is ideal for USB 2.0 hi-speed applications at 480Mbps. The switch also handles all the requirements for USB low and full speed signalling. The MAX4983E is fully specified to operate from single 2.8V to 5.5V power supply and it is protected against 5.5V short to COM1 and COM2. This feature makes the device fully compliant with USB 2.0 specification of VBUS fault protection. It has low threshold voltage logic inputs which permits the device to be used with low I/O voltage systems. The MAX4983E features an active-low enable input that when driven high, sets the device in shutdown mode.
供电电流 600 nA
通道数 2
针脚数 10
带宽 950 MHz
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 950 MHz
电源电压 2.8V ~ 5.5V
安装方式 Surface Mount
引脚数 10
封装 UFQFN-10
封装 UFQFN-10
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Each
制造应用 Signal Processing, Consumer Electronics, Portable Devices, 便携式器材, USB, 信号处理, Portable Devices, 消费电子产品, Consumer Electronics, Signal Processing
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX4983EEVB+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX4983EEVB+T 美信 | 功能相似 | MAX4983EEVB+和MAX4983EEVB+T的区别 |
