MAX4525EUB+T

模拟开关, 1 放大器, DPDT, 150 ohm, 2V 至 12V, µMAX, 10 引脚

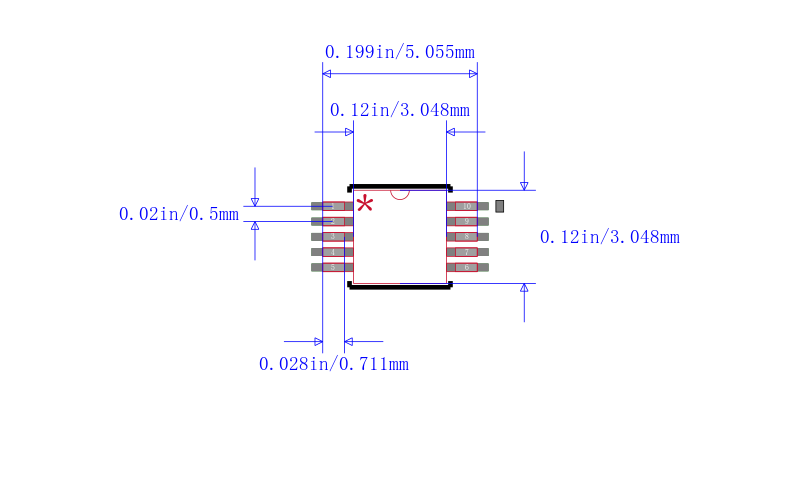

The from Products is a DPDT low voltage, single supply CMOS analogue switch in 10 pin µMAX package. The on-resistance is 200 ohm with a +5V supply and 500 ohm with a +3V supply. Each switch can handle rail to rail analogue signals. The off leakage current is only 2nA at +25°C or 20nA at +85°C. All digital inputs have 0.8V to 2.4V logic thresholds ensuring TTL/CMOS logic compatibility when using a single +5V supply. Typical applications include battery operated equipment, audio and video signal routing, low voltage data acquisition systems and communications circuits.

.

Supply voltage of 2V to 12V

.

Operating temperature range from -40°C to 85°C

.

TTL/CMOS logic compatible

.

Maximum break before make time is 40ns at single +3V supply

.

300ns maximum inhibit turn-on time at +25°C, single +3V supply

.

200ns maximum inhibit turn-off time at +25°C, single +3V supply

.

Audio/Video Signal Routing; Communications Circuits; Data Acquisition Systems; DSL Modems
