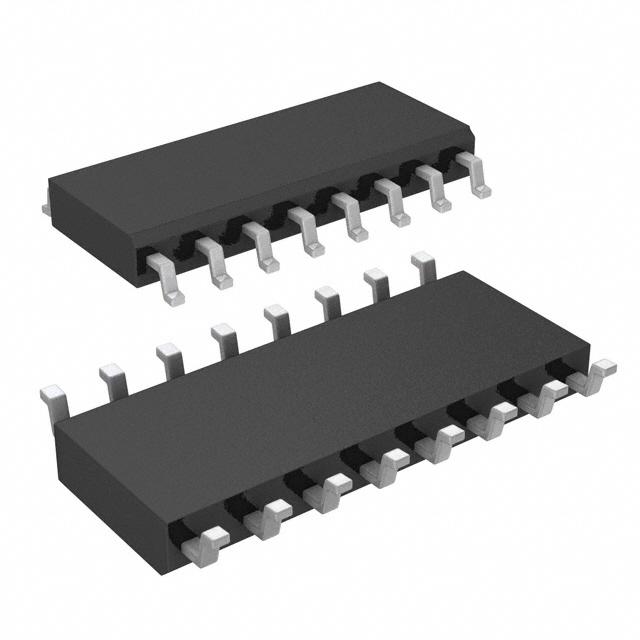

MAX4052AESE+T

Differential Multiplexer, 1 Func, 4Channel, CMOS, PDSO16, 0.15INCH, MS-012C, SOIC-16

2 Circuit IC Switch 4:1 100Ohm 16-SO

立创商城:
MAX4052AESE+T

得捷:
IC MULTIPLEXER DUAL 4X1 16SOIC

安富利:
The MAX4051/MAX4052/MAX4053 and MAX4051A/MAX4052A/MAX4053A are low-voltage, CMOS analog ICs configured as an 8-channel multiplexer MAX4051/A, two 4-channel multiplexers MAX4052/A, and three single-pole/double-throw SPDT switches MAX4053/A. The A-suffix parts are fully characterized for on-resistance match, on-resistance flatness, and low leakage.These CMOS devices can operate continuously with dual power supplies ranging from ±2.7V to ±8V or a single supply between +2.7V and +16V. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 0.1nA at +25°C or 5nA at +85°C MAX4051A/MAX4052A/MAX4053A.All digital inputs have 0.8V to 2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using ±5V or a single +5V supply.

Win Source:
IC MULTIPLEXER DUAL 4X1 16SOIC
