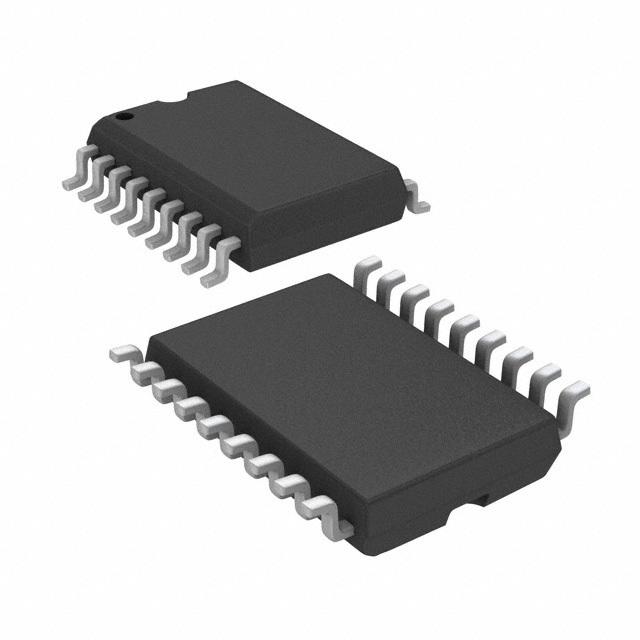

MAX311EWN+

多路复用开关 IC 8-Channel, CMOS RF Video Multiplexer

视频 开关 IC 2 通道 18-SOIC

得捷:
IC VIDEO MULTIPLEXER 4X1 18SOIC

贸泽:
多路复用开关 IC 8-Channel, CMOS RF Video Multiplexer

安富利:
The MAX311 are CMOS monolithic analog multiplexer/demultiplexers designed for use with signal frequencies ranging from DC through video. The MAX311 is for 2-of-8 4 channel differential applications.A key feature of the MAX311 is extremely high off isolation at high frequencies. The isolation of each off channel to the output is guaranteed to be -66dB at 5MHz. The input signal range is +12V to -15V with ±15V power supplies while power consumption is typically 1.1Mw.All control inputs are fully compatible with TTL and CMOS logic. Decoding is in standard BCD format and an Enable input is also provided to simplify cascading of devices. The MAX311 will operate with nearly any power supply combination which totals less than 36V V+ - V- including single supply operation at +12V, +15V, and +28V with V-connected to GND.
