Maxim Integrated Products### 模拟开关，Maxim Integrated
模拟开关（双）， Products
欧时:
### 模拟开关（双），Maxim Integrated Products### 模拟开关，Maxim Integrated
得捷:

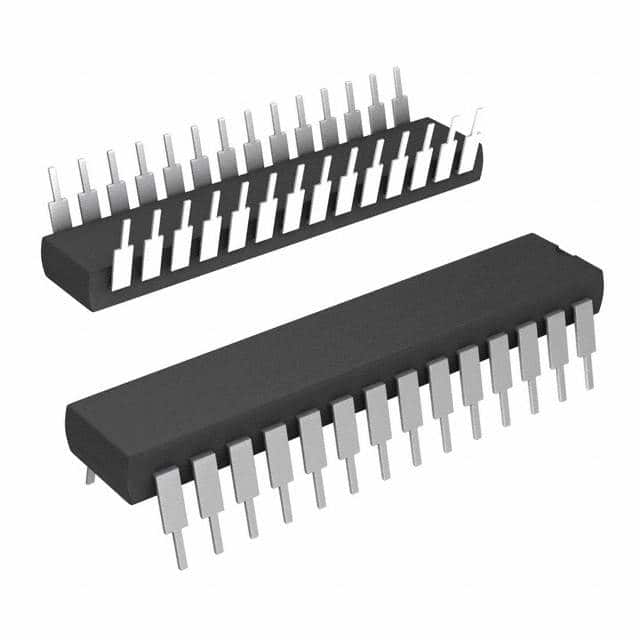

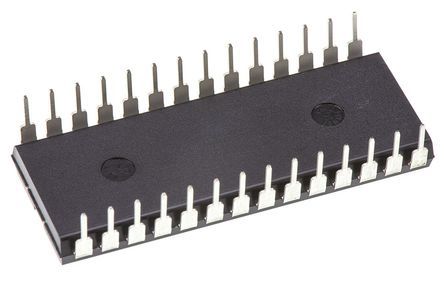

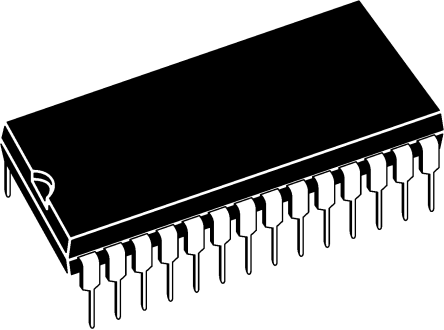

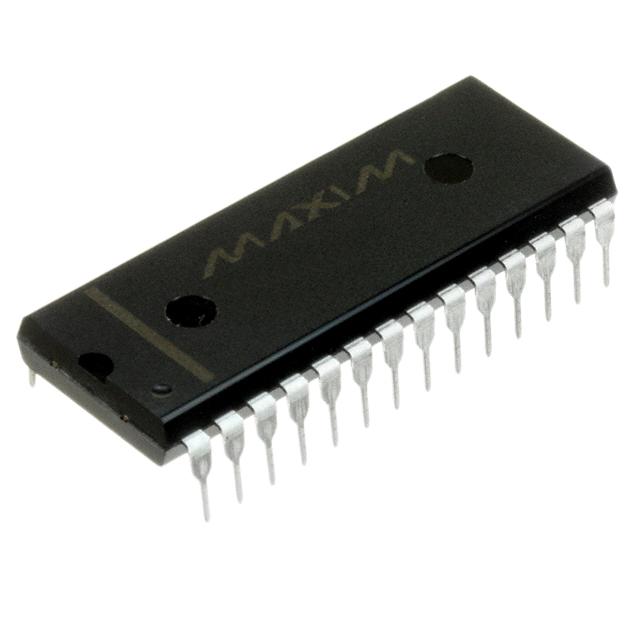

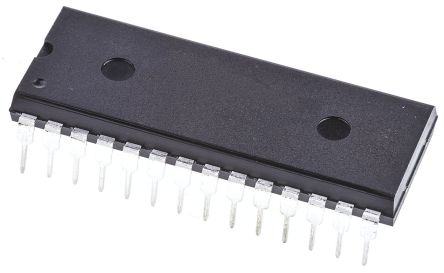

IC MULTIPLEXER DUAL 8X1 28DIP
立创商城:
MAX337CPI+
贸泽:
多路复用开关 IC 8:1 2Ch Low Leakage CMOS MUX
安富利:
The MAX336/MAX337 are monolithic, CMOS analog multiplexers muxes. The 16-channel MAX336 is designed to connect one of 16 inputs to a common output by control of a 4-bit binary address. The dual,8-channel MAX337 is designed to connect one of eight inputs to a common output by control of a 3-bit binary address. Both devices can be used as either a mux or a demux. On-resistance is 400Ω max, and the devices conduct current equally well in both directions.These muxes feature extremely low off leakages less than 20pA at +25°C and on-channel leakages less than 50pA at +25°C. The new design offers guaranteed low charge injection 3.5pC typical and electrostatic discharge ESD protection greater than 2000V, per method 3015.7. These improved muxes are pin-compatible upgrades for the industry-standard DG506 and DG507.The MAX336/MAX337 operate from a single +4.5V to +30V supply or from dual ±4.5V to ±20V supplies. All control inputs whether address or enable are TTL compatible 0.8V to 2.4V over the full specified temperature range and over the ±4.5V to ±18V supply range.
