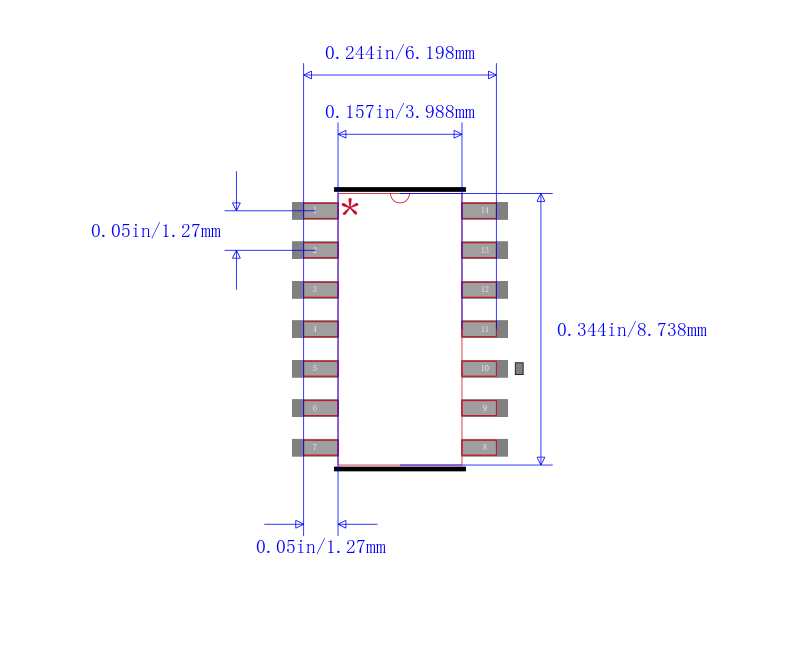

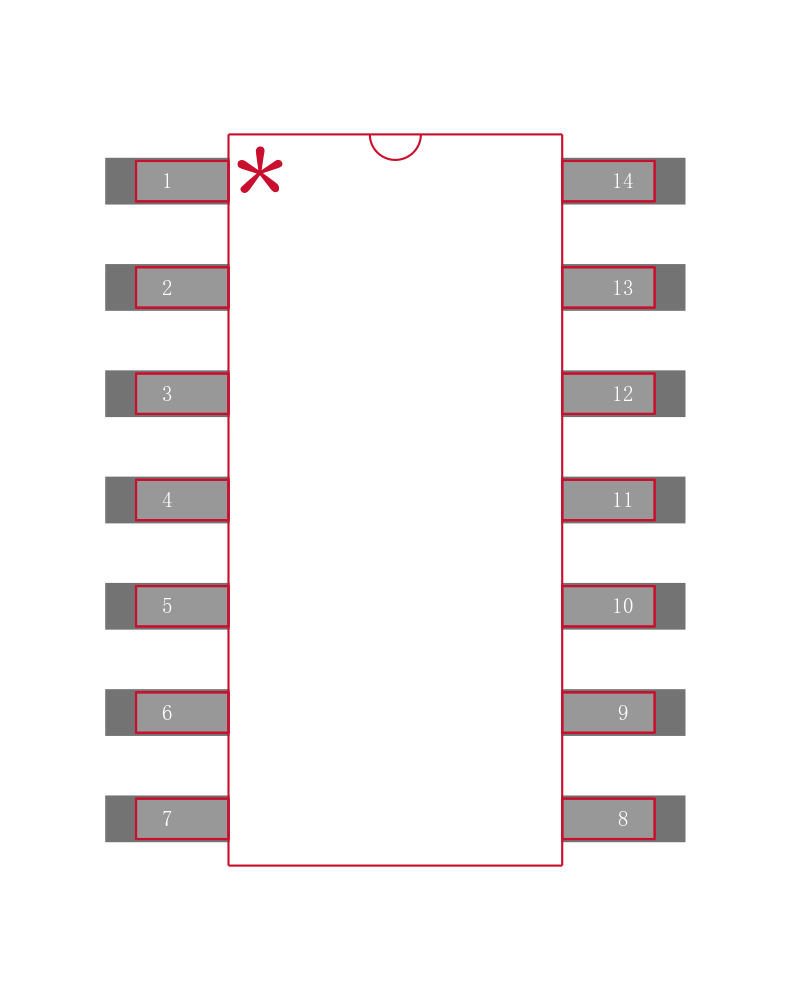

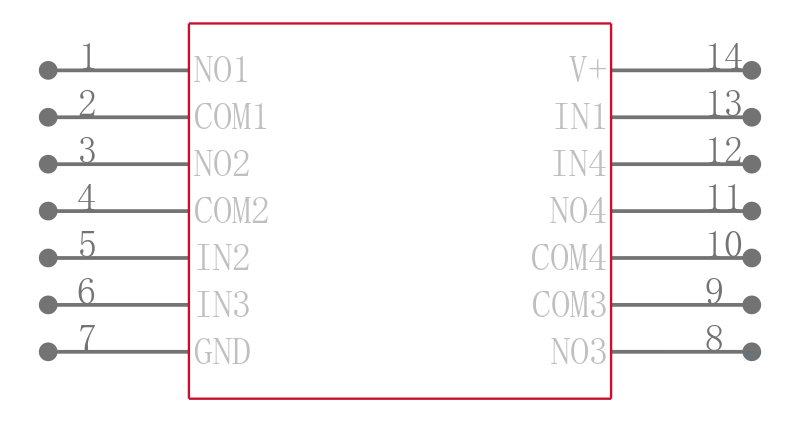

MAX4066ACSD

低成本，低电压，四路， SPST ， CMOS模拟开关 Low-Cost, Low-Voltage, Quad, SPST, CMOS Analog Switches

General Description

The MAX4066/MAX4066A quad, SPST, CMOS analog switches are designed to provide superior performance over the industry-standard devices. These new switch es feature guaranteed operation from +2.0V to +16V and are fully specified at 3V, 5V, and 12V. Both parts offer 45Ωon-resistance and 2Ωchannel-to-channel matching at 12V, plus 4Ωflatness over the specified signal range.

Features

♦Pin Compatible with 74HC4066

♦Guaranteed On-Resistance:

  170Ωmax 3V supply

  45Ωmax 12V supply

♦Guaranteed Match Between Channels:

  4Ωmax MAX4066

  2Ωmax MAX4066A

♦Guaranteed Low Leakage Currents:

  1nA at +25°C MAX4066

  100pA at +25°C MAX4066A

♦Single-Supply Operation from +2.0V to +16V

♦V+ to GND Signal Handling

♦TTL/CMOS-Logic Compatible

♦Low Power Consumption: 0.5µW

♦Low Crosstalk: -86dB

♦Low Off Isolation: -58dB

♦Low Distortion: 0.03%

♦Wide Bandwidth: > 100MHz

Applications

Battery-Operated Equipment

Audio and Video Signal Routing

Low-Voltage Data-Acquisition Systems

Sample-and-Hold Circuits

Communication Circuits
