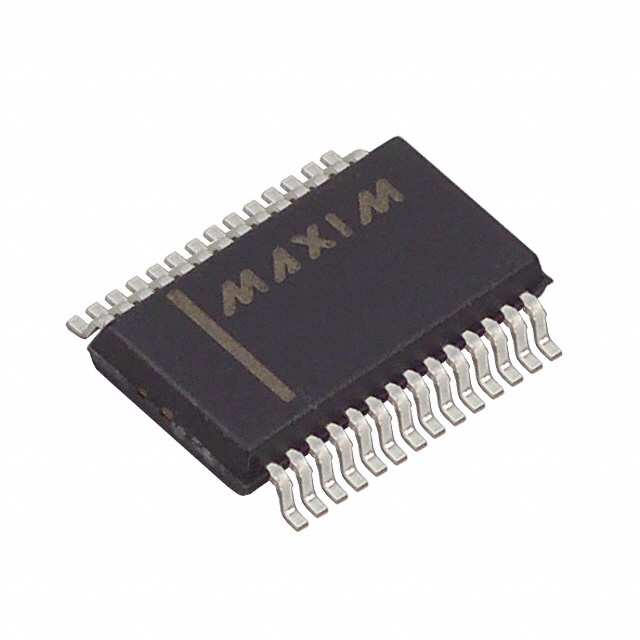

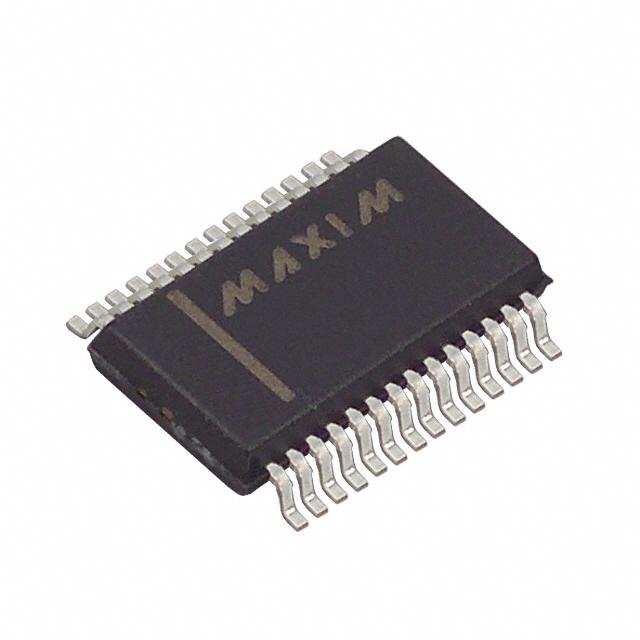

MAX396CAI

高精度， 16通道/双8通道，低电压， CMOS模拟多路复用器 Precision, 16-Channel/Dual 8-Channel, Low-Voltage, CMOS Analog Multiplexers

General Description

The MAX396/MAX397 low-voltage, CMOS analog multiplexers muxes offer low on-resistance 100Ω max, which is matched to within 6Ωbetween switches and remains flat over the specified signal range 10Ωmax. They also offer low leakage over temperature input off-leakage current less than 1nA at +85°C and fast switching speeds transition time less than 250ns. The MAX396 is a 16-channel device, and the MAX397 is a dual 8-channel device.

Features

♦Pin Compatible with MAX306/MAX307,DG406/DG407, DG506A/DG507A

♦Single-Supply Operation +2.7V to +16V

  Dual-Supply Operation ±2.7V to ±8V

♦Low On-Resistance 100Ωmax

♦Guaranteed RON Match Between Channels 6Ω max

♦Guaranteed RON Flatness over Specified Signal Range 10Ω max

♦Guaranteed Low Charge Injection 5pC max

♦Input Off-Leakage Current < 1nA at +85°C

♦Output Off-Leakage Current < 2.5nA at +85°C

♦Low Power Consumption < 10µW

♦TTL/CMOS Compatible
