MAX4540EAP

低电压，单8选1和双4 ：1的卡尔 - 多路复用器 Low-Voltage, Single 8-to-1 and Dual 4-to-1 Cal-Multiplexers

General Description

The MAX4539/MAX4540 low-voltage, CMOS 8-channel MAX4539 and dual 4-channel MAX4540 multiplexers are ideal for precision ADC calibration and system selfmonitoring applications. These calibration multiplexers cal-muxes have precision resistor-dividers to generate accurate voltage ratios from an input reference voltage. The reference ratios include 15/4096 and 4081/4096 of the external reference voltage, accurate to 15 bits, and 1/2V+ and 5/8V+ - V-, accurate to 8 bits. The external reference voltage as well as ground can also be switched to the output.

Features

♦ On-Chip Gain and Offset Divider Networks Provide 15-Bit Accurate Output Ratios

♦ On-Chip V+ to GND and V+ to V- Divider Networks Provide 8-Bit Accurate Output Ratios

♦ RON: 100Ω max

♦ RON Matching Between Channels: 6Ω max

♦ Charge Injection: 5pC max

♦ Low 0.1nA Off Leakage Current

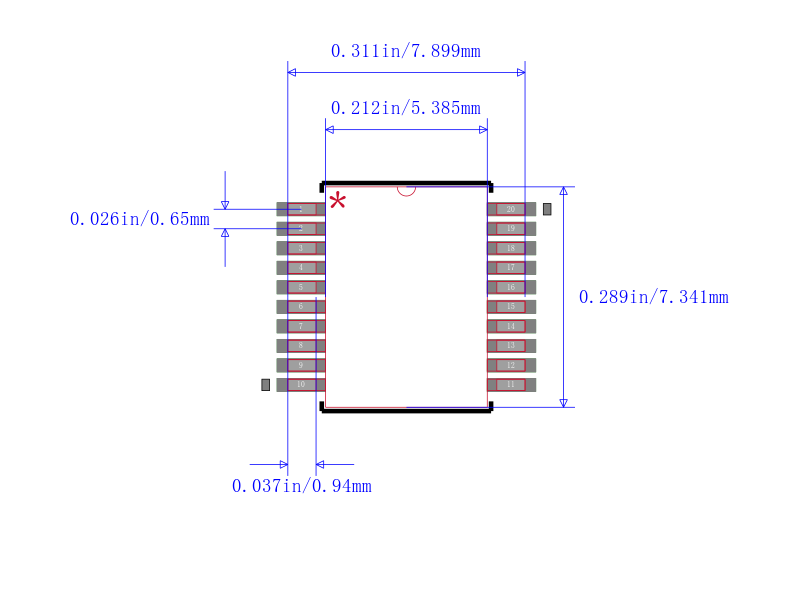

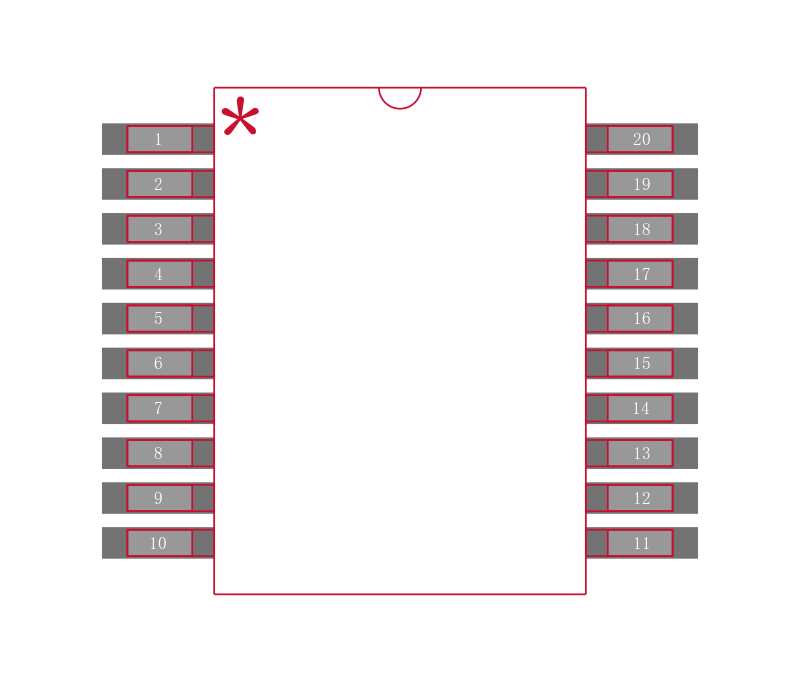

♦ Small 20-Pin SSOP/SO/DIP Packages

Applications

  Battery-Operated Equipment

  Avionics

  Data-Acquisition Systems

  Audio-Signal Routing

  Test Equipment Networking
