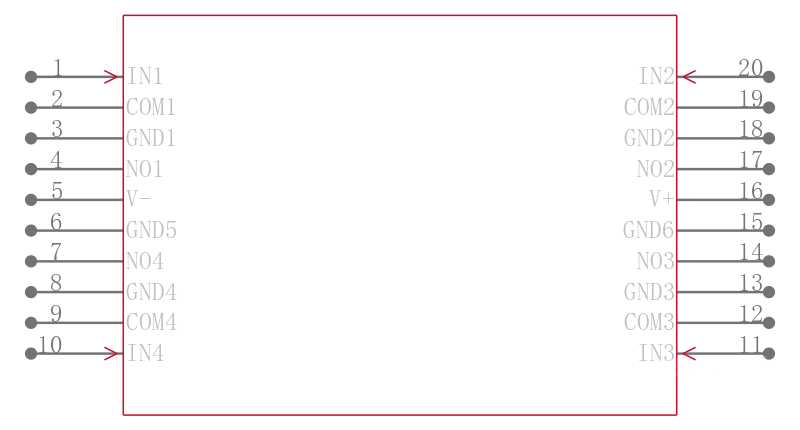

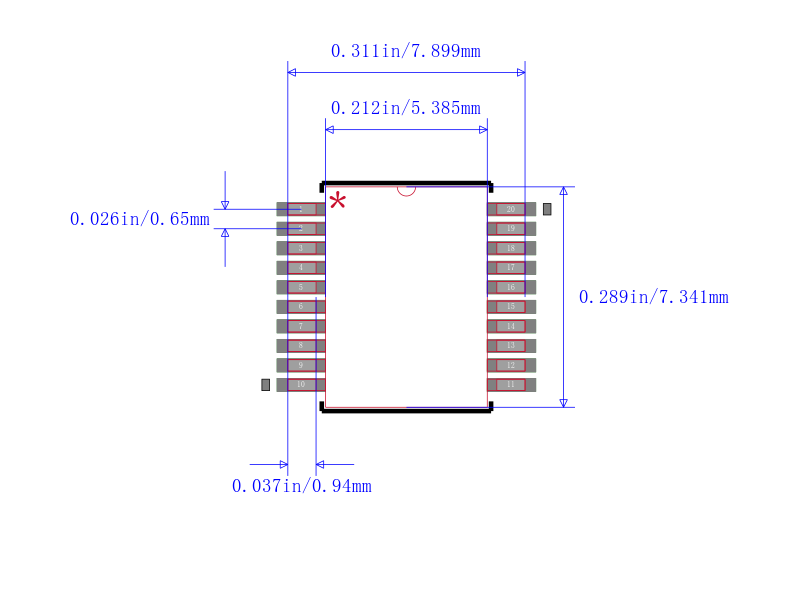

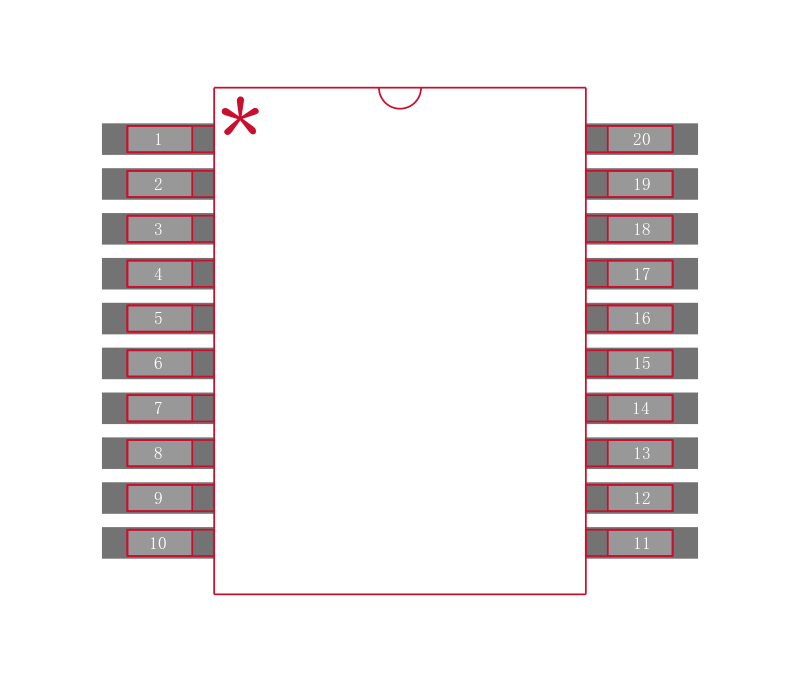

MAX4545EAP

四核/双通道，低电压，双向RF /视频开关 Quad/Dual, Low-Voltage, Bidirectional RF/Video Switches

General Description

The MAX4545/MAX4546/MAX4547 are low-voltage T-switches designed for switching RF and video signals from DC to 300MHz in 50Ω and 75Ω systems. The MAX4545 contains four normally open single-pole/singlethrow SPST switches. The MAX4546 contains two dual SPST switches one normally open, one normally closed. The MAX4547 contains two single-pole/double-throw SPDT switches.

Features

♦ Low 50Ω Insertion Loss: -1dB at 100MHz

♦ High 50Ω Off Isolation: -80dB at 10MHz

♦ Low 50Ω Crosstalk: -80dB at 10MHz

♦ DC to 300MHz -3dB Signal Bandwidth

♦ 20Ω Signal Paths with ±5V Supplies

♦ 1Ω Signal-Path Matching with ±5V Supplies

♦ 0.5Ω Signal-Path Flatness with ±5V Supplies

♦ ±2.7V to ±6V Dual Supplies

  +2.7V to +12V Single Supply

♦ Low Power Consumption: <1µW

♦ Rail-to-Rail Bidirectional Signal Handling

♦ Pin Compatible with Industry-Standard DG540, DG542, DG643

♦ >2kV ESD Protection per Method 3015.7

♦ TTL/CMOS-Compatible Inputs with Single +5V or ±5V

Applications

  RF Switching

  Video Signal Routing

  High-Speed Data Acquisition

  Test Equipment

  ATE Equipment

  Networking
