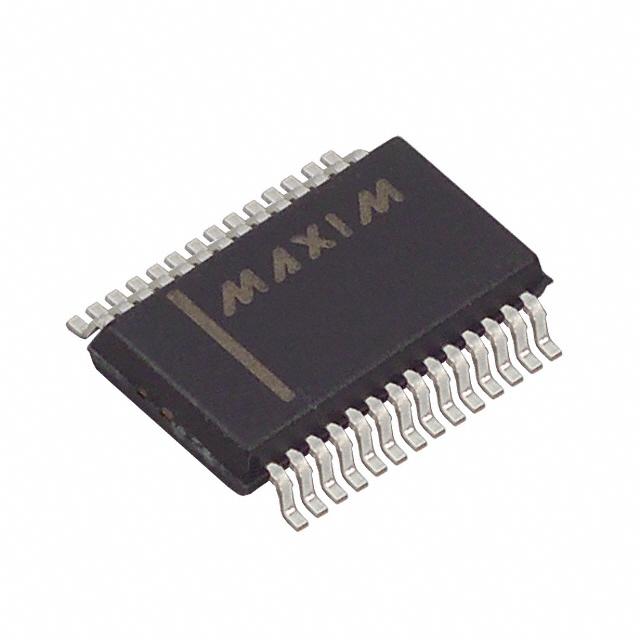

MAX4588EAI

低电压，高隔离，双路4通道射频/视频多路复用器 Low-Voltage, High-Isolation, Dual 4-Channel RF/Video Multiplexer

General Description

The MAX4588 low-voltage, dual 4-channel multiplexer is designed for RF and video signal processing at frequencies up to 180MHz in 50Ωand 75Ωsystems. A flexible digital interface allows control of on-chip functions through either a parallel interface or an SPI™/ MICROWIRE™ serial port. Each channel of the MAX4588 is designed using a “T” switch configuration, ensuring excellent high-frequency off-isolation. The MAX4588 has low on-resistance of 60Ω max, with an on-resistance match across all channels of 4Ωmax. Additionally, on-resistance is flat across the specified signal range 2Ωmax. The off leakage current is under 1nA at TA= +25°C, and less

than 10nA at TA= +85°C.

Features

♦Low Insertion Loss: -2.5dB up to 100MHz

♦High Off-Isolation: -74dB at 10MHz

♦Low Crosstalk: -70dB up to 10MHz

♦16MHz -0.1dB Signal Bandwidth

♦180MHz -3dB Signal Bandwidth

♦60Ωmax On-Resistance with ±5V Supplies

♦4Ωmax On-Resistance Matching with ±5V Supplies

♦2Ωmax On-Resistance Flatness with ±5V Supplies

♦+2.7V to +12V Single Supply

  ±2.7V to ±6V Dual Supplies

♦Low Power Consumption: <20µW

♦Rail-to-Rail®, Bidirectional Signal Handling

♦Parallel or SPI/MICROWIRE-Compatible Serial Interface

♦>±2kV ESD Protection per Method 3015.7

♦TTL/CMOS-Compatible Inputs with VL= +5V
