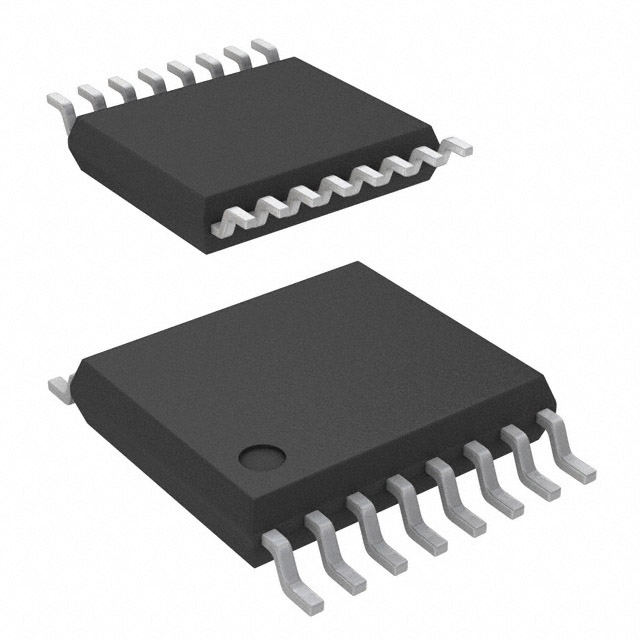

MAX4582AUE

低电压， CMOS模拟多路复用器/开关 Low-Voltage, CMOS Analog Multiplexers/Switches

General Description

The MAX4581/MAX4582/MAX4583 are low-voltage, CMOS analog ICs configured as an 8-channel multiplexer MAX4581, two 4-channel multiplexers MAX4582, and three single-pole/double-throw SPDT switches MAX4583. These CMOS devices can operate continuously with

±2V to ±6V dual power supplies or a +2V to +12V single supply. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 1nA at +25°C or 5nA at +85°C.

Features

♦Offered in Automotive Temperature Range -40°C to +125°C

♦Guaranteed On-Resistance

   80Ω with ±5V Supplies

   150Ω with Single +5V Supply

♦Guaranteed On-Resistance Match Between Channels

♦Guaranteed Low Off-Leakage Current 1nA at +25°C

♦Guaranteed Low On-Leakage Current 1nA at +25°C

♦+2V to +12V Single-Supply Operation

   ±2V to ±6V Dual-Supply Operation

♦TTL/CMOS-Logic Compatible

♦Low Distortion: < 0.02% 600Ω

♦Low Crosstalk: < -96dB 50Ω, MAX4582

♦High Off-Isolation: < -74dB 50Ω
