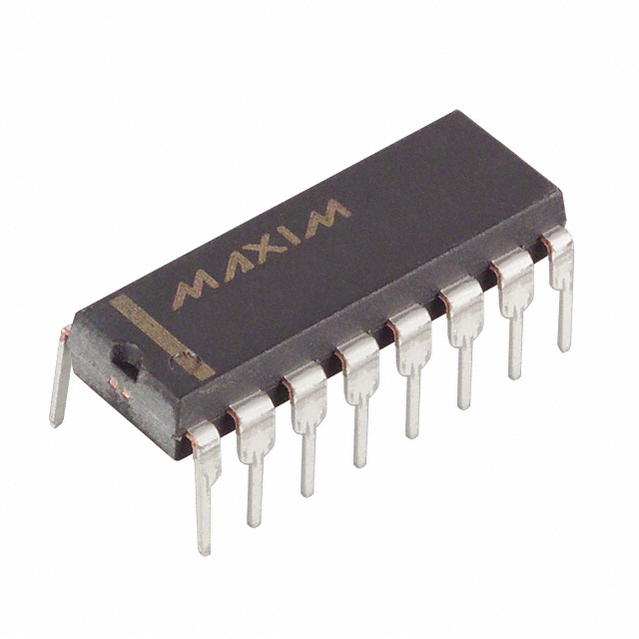

MAX4661CPE

2.5W ，四路， SPST ， CMOS模拟开关 2.5W, Quad, SPST, CMOS Analog Switches

General Description

The MAX4661/MAX4662/MAX4663 quad analog switches feature low on-resistance of 2.5Ωmax. On-resistance is

matched between switches to 0.5Ωmax and is flat 0.5Ωmax over the specified signal range. Each switch can handle Rail-to-Rail®analog signals. Offleakage current is only 5nA max at TA= +85°C.

Features

♦Low On-Resistance 2.5Ωmax

♦Guaranteed RONMatch Between Channels 0.5Ωmax

♦Guaranteed RONFlatness over Specified Signal Range 0.5Ωmax

♦Rail-to-Rail Signal Handling

♦Guaranteed Break-Before-Make MAX4663

♦> 2kV ESD Protection per Method 3015.7

♦+4.5V to +36V Single-Supply Operation

  ±4.5V to ±20V Dual-Supply Operation

♦TTL/CMOS-Compatible Control Inputs

Applications

Reed Relay Replacement

Avionics

Test Equipment

ADC Systems

Communication Systems

Sample-and-Hold Circuits

PBX, PABX Systems

Data Acquisition Systems

Audio-Signal Routing
