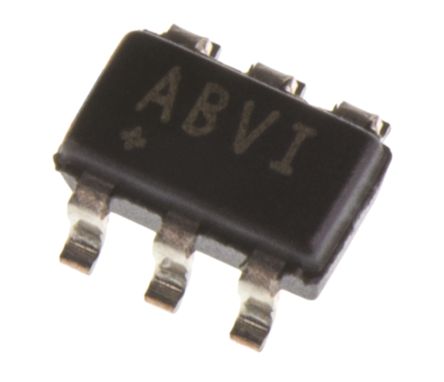

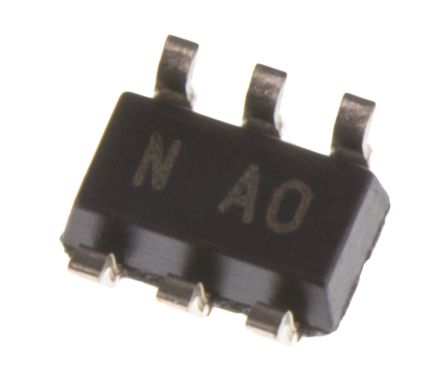

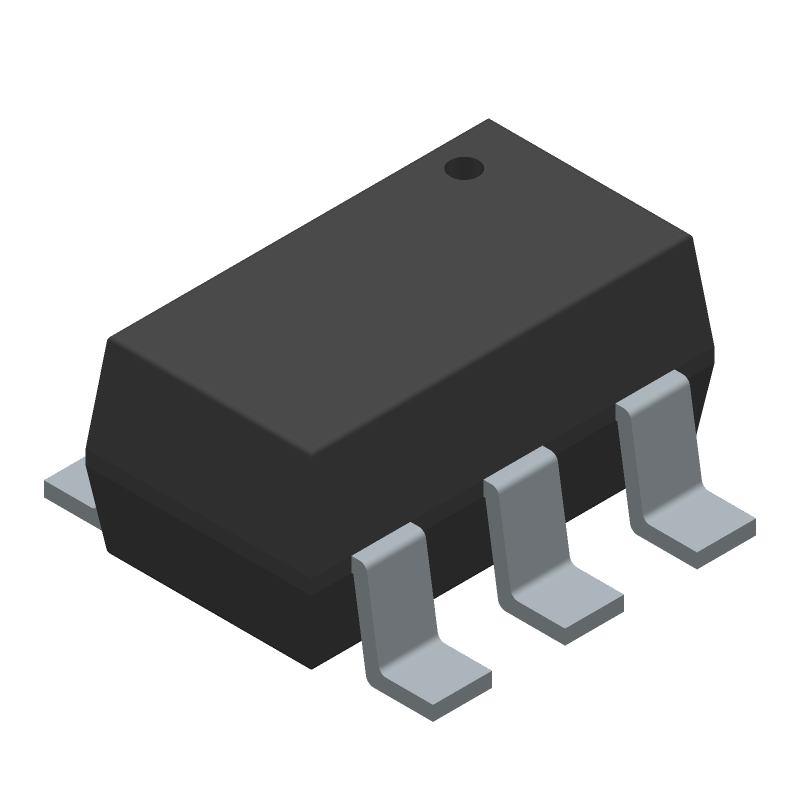

MAX3294AUT+T

MAXIM INTEGRATED PRODUCTS  MAX3294AUT+T  芯片, RS422 发送器, 2.5MBPS, 3.465V, SOT23-6

The is a 2.5Mbps, +3.3V, RS485/ RS422 transmitter in 6 pin SOT-23 package. The low power, high speed transmitter for RS485/RS422 communication operates from a single +3.3V power supply. The device contains one differential transmitter. This device is slew rate limited to minimize EMI and reduce reflections caused by improperly terminated cables. The output level at +1.5V with a standard 54ohm load compliant with RS485 specifications. The transmitter draws 5mA of supply current when the device not connected to load and 1µA in low power shutdown mode DE = GND. Hot-swap circuitry eliminates false transitions on the data cable during circuit initialization or connection to a live backplane. The short circuit current limiting and thermal shutdown circuitry protect the driver against excessive power dissipation.

.

Supply voltage range is 3.135V to 3.465V

.

Operating temperature range from -40°C to 125°C

.

Common mode input voltage range from -7V to +12V

.

Current limiting and thermal shutdown for driver overload protection

.

ESD protection ±9KV using human body model
